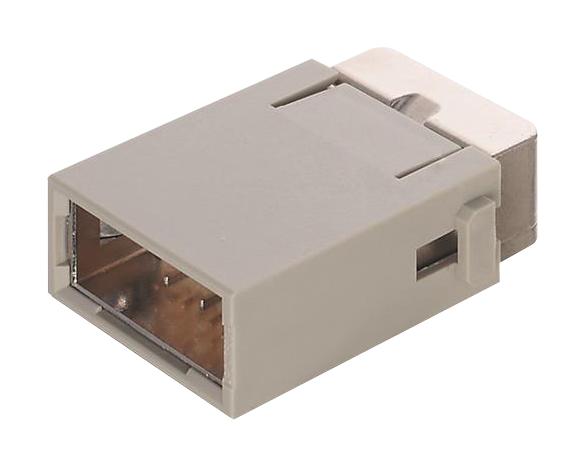

Harting 09140273013 Shielded Module
The Han HD shielded male module from HARTING is designed for high-density signal and power transmission in industrial automation. It features a crimp termination, shielding for electromagnetic compatibility, and a robust zinc die-cast housing with V-0 flammability rating. Rated for a current of 2A and voltage of 16V, it supports up to 2500 mating cycles, operating safely from -40°C to +85°C. Suitable for applications requiring reliable shielding and easy crimp connection, this module ensures durability and electrical safety in demanding environments.
Harting 09140273013 Shielded Module Specifications:
- Termination Method: Crimp
- Gender: Male
- Number of contacts: 27
- Additional contacts: + shielding
- Conductor cross-section: 0.13 to 0.33 mm²
- Rated current: 2A
- Rated voltage: 16V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 3
- Contact resistance, shielding: 10 mΩ
- Limiting temperature: -40°C to +85°C
- Mating cycles: 2500
- Material (insert): LCP
- Material (shielding): Zinc die-cast, nickel-plated
- Material flammability class: V-0
- Certifications: EN 60664-1, IEC 61984
Buy the HARTING 09140273013 – Reliable Shielded Module for Industrial Applications
Discover the HARTING shielded male module, known for its high reliability and excellent shielding capabilities. Perfect for industrial automation, it offers robust zinc die-cast housing, high mating cycle durability, and easy crimp termination. Rated for 2A current and 16V voltage, it ensures safe and stable performance in harsh environments with temperatures from -40°C to +85°C. This module meets international standards such as EN 60664-1 and IEC 61984, making it an ideal choice for dependable, long-lasting industrial connections.
Buy HARTING 09140273013 shielded module now and ensure reliable signal integrity with high-density, electromagnetic shielding for industrial automation projects.
Frequently Asked Questions
Where can I buy Harting 09140273013?
You can click on the BUY or RFQ button to purchase 09140273013 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09140273013?
You can download the 09140273013 datasheet or visit the Harting website for support.
Who is the manufacturer of 09140273013?
Harting
