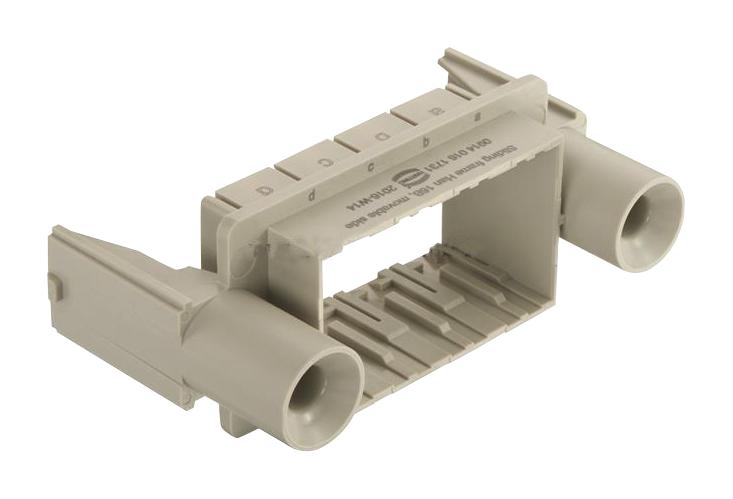

Harting 09140161731 Sliding Frame
The sliding frame Han 16B with movable side is a versatile accessory designed for industrial connectors, supporting 4 modules with test position. Made from V-0 flammability class polycarbonate, it withstands temperatures from -5°C to +55°C and endures up to 2500 mating cycles. The frame features a +3 mm. lock-in range and +4 mm. floating tolerance for precise fitting. It complies with RoHS, China RoHS, REACH standards, and IEC 61984 specifications, making it suitable for various demanding industrial applications, ensuring safety, durability, and reliable performance.
Harting 09140161731 Sliding Frame Specifications:
- Material: Polycarbonate (PC), V-0 flammability class
- Temperature Range: -5°C to +55°C
- Mating Cycles: 2500
- Lock-in Range: +3 mm.
- Floating Tolerance: +4 mm
- Support for 4 modules with test position
- Size: for 4 modules
- Identification: Category - Sliding frame; Type - Movable side; Size - 16B
- Material Properties: Compliant with RoHS, China RoHS, REACH
- Country of Origin: China
- Net Weight: 39.69 grams
- Certifications: IEC 61984, EN Standards
- Flammability: V-0
- ECl@ss: 27440210
Buy the HARTING 09140161731 – Reliable Sliding Frame for Industrial Applications
Enhance your industrial connector assembly with this high-quality sliding frame supporting 4 modules and test position. Crafted from flame retardant polycarbonate, it offers excellent durability, a temperature range of -5°C to +55°C, and up to 2500 mating cycles for long-lasting performance. Designed for precise fit with a +3 mm. lock-in range and +4 mm. floating tolerance, the frame meets strict RoHS, China RoHS, and REACH standards. Easy to install, ideal for demanding industrial environments, ensuring safety, reliability, and efficiency in your electrical assemblies.
Buy HARTING 09140161731 now and experience unmatched durability and reliable connection performance for industrial connectors.
Frequently Asked Questions
Where can I buy Harting 09140161731?
You can click on the BUY or RFQ button to purchase 09140161731 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09140161731?
You can download the 09140161731 datasheet or visit the Harting website for support.
Who is the manufacturer of 09140161731?
Harting
