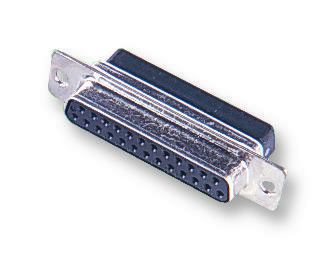

Harting 09670094701 D-Sub Connector
The HARTING 09670094701 is a D-Sub connector conforming to DIN 41 652 and CECC 75 301-802 specifications. It features a robust metal shell with dimples for added protection and secure mounting. This connector is suitable for a wide range of industrial applications requiring reliable data transmission. Crimp contacts must be ordered separately to complete the assembly. Refer to the provided documentation for mating conditions and tooling information.
Harting 09670094701 D-Sub Connector Specifications:
- number_of_contacts: 9--50
- connector_type: Male/Female Connector
- shell_material: Metal with dimples
- panel_cutout: For front/rear mount
- standard: CECC 75 301-802
- contact_ordering: Order contacts separately
- dimensions_a: 30.9 mm (9 contacts)
- dimensions_b: 25.0 mm (9 contacts)
- dimensions_c: 12.5 mm (9 contacts)
- dimensions_a_15: 39.2 mm (15 contacts)
- dimensions_b_15: 33.3 mm (15 contacts)
- dimensions_c_15: 12.5 mm (15 contacts)
- dimensions_a_25: 53.1 mm (25 contacts)
- dimensions_b_25: 47.0 mm (25 contacts)
- dimensions_c_25: 12.5 mm (25 contacts)
- dimensions_a_37: 69.4 mm (37 contacts)
- dimensions_b_37: 63.5 mm (37 contacts)
- dimensions_c_37: 12.5 mm (37 contacts)
- dimensions_a_50: 67.0 mm (50 contacts)
- dimensions_b_50: 61.1 mm (50 contacts)
- dimensions_c_50: 15.4 mm (50 contacts)
