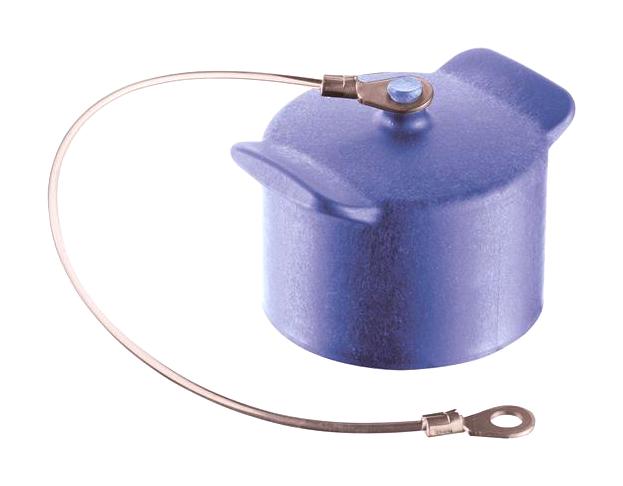

Harting 09155135401 Han F+B Cover Agg Blue
The HARTING Han F+B cover-agg blue is a robust protection cover designed for use with Han®F+B connectors. It is ideal for applications requiring a high degree of protection, such as in the food and beverage industry where frequent cleaning is necessary. The cover features a screw locking mechanism and offers IP67 and IP6K9K degrees of protection. Constructed from Polypropylen, it is suitable for temperatures ranging from -40°C to +125°C and is designed to withstand repeated mating cycles. It is also compliant with various regulations including RoHS, ELV, China RoHS, REACH, and EG1935/2004, and approved for use with Ecolab cleaning agents and FDA standards.
Harting 09155135401 Han F+B Cover Agg Blue Specifications:
- Part Number: 09 15 513 5401
- Specification: Han F+B cover-agg blue
- Series: Han®F+B
- Type of hood/housing: Protection cover
- Description of hood/housing: for bulkhead mounted housings, for cable to cable housing, With fixing cord
- Locking type: Screw locking
- Field of application: Connector for food+beverage industry
- Cleaning: For cleaning with high pressure lances, a cleaning distance > 30 cm is recommended
- Strain relief: A suitable strain relief is required
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Degree of protection acc. to IEC 60529: IP67 in locked position
- Degree of protection acc. to ISO 20653: IP6K9K
- Material (hood/housing): Polypropylen
- Roughness of the surface: ≤1.12 µm
- Colour (hood/housing): Blue
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: No
- EG1935/2004: compliant
- Approvals: Ecolab Topactive 200, Ecolab Topactive 500, Ecolab Topax 66, Ecolab Topactive OKTO, Ecolab Topax 990, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600
- Packaging size: 1
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440208 Cap for industrial connectors
