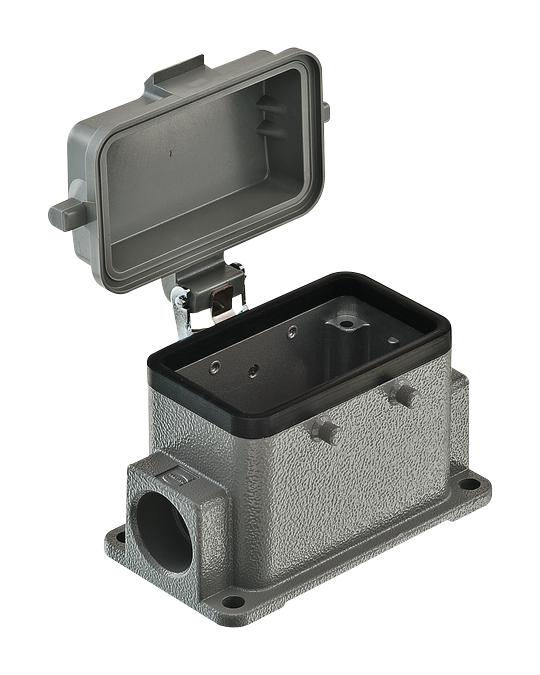

Harting 09300101221 Han B Base Surface Housing
The HARTING Han B Base Surface LC 4 Pegs Thermoplast housing is designed for industrial connector applications requiring a durable and sealed connection. Constructed from aluminum die-cast with a powder-coated finish (RAL 7037), it offers excellent protection against environmental factors. The housing incorporates a double locking lever for enhanced security and features a low-construction design with side entry and a Pg 16 cable entry. It is RoHS compliant and suitable for a wide range of industrial environments, ensuring reliable performance and longevity.
Harting 09300101221 Han B Base Surface Housing Specifications:
- Part Number: 09 30 010 1221
- Specification: Han B Base Surface LC 4 Pegs Thermoplast
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Description of hood/housing: With thermo-plastic cover
- Type: Low construction
- Cable entry: 1x Pg 16
- Locking type: Double locking lever
- Field of application: Standard hoods/housings
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
- California Proposition 65: Nickel, Naphthalene
- Approvals: DNV GL
- CE: Yes
- Packaging size: 1
- Net weight: 221.8 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
