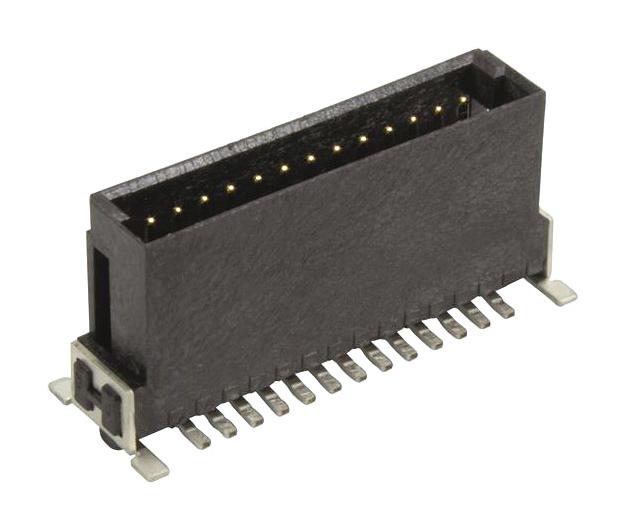

Harting 15130322601000 Male Connector
The har-flex straight male connector is a versatile and RoHS compliant electrical component designed for industrial applications. It features multiple stacking heights of 1.75mm, 3.25mm, and 4.85mm, suitable for various PCB configurations with 6 to 100 poles. The connector supports lead-free and leaded soldering with SAC, SnNi, and SnPb40 solder types, and can be printed using precise stencil techniques. It offers high insulation resistance, low contact resistance, and a working temperature range of -55°C to +125°C, making it ideal for reliable power and signal connections in demanding environments.
Harting 15130322601000 Male Connector Specifications:
- Number of contacts: 6 to 100 poles
- Contact spacing: 1.27mm x 1.27mm
- Test Voltage: 500V
- Contact resistance: less than 25 mOhm
- Insulation resistance: >10^4 Ohm
- Working current: see derating diagram
- Working temperature range: -55°C to +125°C
- Termination technology: SMT
- Reflow processing temperature: >217°C for 150s
- PCB pad plating: HAL, NiAu, Immersion Sn
- Material: Liquid crystalline polymer (LCP), black, UL94-VO
- Contact material: Copper alloy with Sn plating, Au over PdNi
- Contact finish: Au over PdNi for performance level 2 and 4
- Mating cycles: approx. PL1 = 500, PL2 = 250
- Voltage rating: 100V / 150V depending on installation
- RoHS compliant, lead-free
- Push-in, snap-in mounting for secure connection
- Connector dimensions: varies with stacking height (1.75mm, 3.25mm, 4.85mm)
Buy the HARTING har-flex 15130322601000 – Reliable Connector for Industrial Applications
Enhance your industrial connectivity with the reliable male connector. Designed for versatility and durability, this connector features various stacking heights and supports multiple soldering techniques. It offers excellent electrical performance with low contact resistance and high insulation resistance, suitable for demanding environments. Easy to install with SMT mounting technology, it ensures long-lasting power and signal transfer. Buy online now for quick delivery and dependable industrial connections that meet strict RoHS standards and industry requirements.
Buy HARTING har-flex 15130322601000 now and experience unmatched reliability and performance in industrial power and signal connections.
Frequently Asked Questions
Where can I buy Harting 15130322601000?
You can click on the BUY or RFQ button to purchase 15130322601000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15130322601000?
You can download the 15130322601000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15130322601000?
Harting
