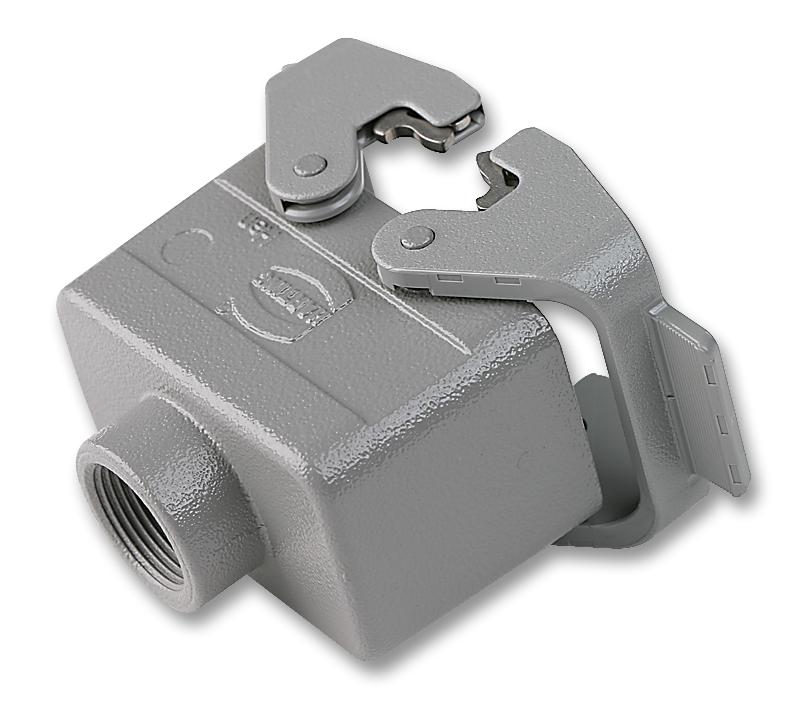

Harting 09300101431 Han B Hood Top Entry
The HARTING Han B Hood Top Entry LC 2 Levers PG 16 is a high-quality hood designed for demanding industrial applications. Constructed from powder-coated aluminum die-cast, it offers excellent protection against environmental factors. The top entry design simplifies cable installation, while the double locking lever mechanism ensures secure connections. This hood is ideal for applications requiring robust and reliable connectivity in harsh environments, such as factory automation, power distribution, and heavy machinery.
Harting 09300101431 Han B Hood Top Entry Specifications:
- Series: Han®B
- Type: Hood
- Construction: Low construction
- Cable entry: 1x Pg 16
- Locking type: Double locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection IEC 60529: IP65, IP66, IP67
- Type rating UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Material flammability class UL 94: V-0
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances: Nickel
- Approvals: DNV GL
- CE: Yes
- Packaging size: 1
- Net weight: 160.08 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
Buy the 09300101431 HARTING Han B Hood Top Entry | myMectronic
Purchase the HARTING 09300101431 Han B Hood Top Entry with confidence and security.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09300101431?
You can click on the BUY or RFQ button to purchase 09300101431 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09300101431?
You can download the 09300101431 datasheet or visit the Harting website for support.
Who is the manufacturer of 09300101431?
Harting
