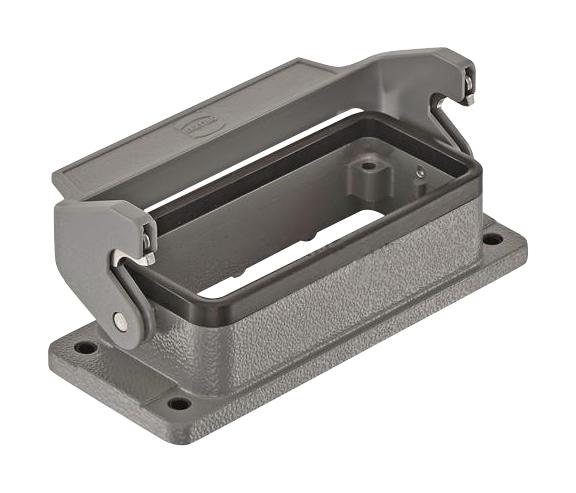

Harting 09300161307 Han 16B-AGG-LB Housing
The HARTING Han 16B-AGG-LB IP67 is a robust, bulkhead mounted housing designed for industrial connector applications. Constructed from aluminum die-cast and finished with a powder coating in RAL 7037 (dust grey), this housing offers excellent protection against environmental factors. It incorporates a single locking lever and utilizes Han-Easy Lock® technology for secure connections. Suitable for a wide range of industrial applications, this housing ensures reliable performance and durability. Please refer to the user documentation for complete and up-to-date information and data.
Harting 09300161307 Han 16B-AGG-LB Housing Specifications:
- Part Number: 09 30 016 1307
- Specification: Han 16B-AGG-LB IP67
- Series of hoods/housings: Han®B
- Type of hood/housing: Bulkhead mounted housing
- Type: Low construction
- Size: 16 B
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection acc. to IEC 60529: IP65, IP67
- Type rating acc. to UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers): V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances: Nickel, Naphthalene
- Approvals: DNV GL
- UL / CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 122.38 g
- Country of origin: China
- European customs tariff number: 85389099
- eCl@ss: 27440202 Shell for industrial connectors
