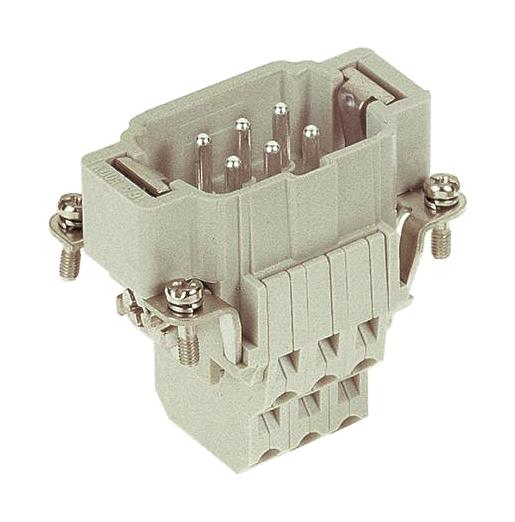

Harting 09330062672 6 Position M Insert
The HARTING Han ESS 06 Pos. M Insert Double Cage Cla is a high-quality connector designed for demanding industrial environments. This insert provides a reliable connection with a double cage clamping termination, ensuring secure and consistent electrical contact. It is compatible with hoods and housings designed for high construction requirements, making it ideal for applications in automation, energy, and transportation. The insert supports a broad range of conductor sizes, from AWG 26 to AWG 14, and offers excellent electrical performance with a rated current of 16A and a rated voltage of 500V. Its robust construction and high-quality materials ensure long-term reliability and performance in harsh conditions.
Harting 09330062672 6 Position M Insert Specifications:
- Part Number: 09 33 006 2672
- Han ESS: 06 Pos. M Insert Double Cage Cla
- Termination Method: Cage-clamp termination
- Gender: Male
- Size: 6 B
- Number of Contacts: 6
- PE Contact: Yes
- Conductor Cross-Section: 0.14 ... 2.5 mm²
- AWG: 26 ... 14
- Rated Current: 16 A
- Rated Voltage: 500 V
- Rated Impulse Voltage: 6 kV
- Pollution Degree: 3
- UL Rated Voltage: 600 V
- CSA Rated Voltage: 600 V
- Insulation Resistance: >10 Ω
- Contact Resistance: ≤3 mΩ
- Stripping Length: 9 ... 11 mm
- Limiting Temperature: -40 ... +125 °C
- Mating Cycles: ≥500
- Material (Insert): Polycarbonate (PC)
- Color (Insert): RAL 7032 (pebble grey)
- Material (Contacts): Copper alloy
- Surface (Contacts): Silver plated
- Flammability Class: V-0
- RoHS: compliant with exemption
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII: No
- REACH ANNEX XIV: No
- REACH SVHC: Lead
- ECHA SCIP Number: 5dbb3851-b94e-4e88-97a1-571845975242
- Packaging Size: 1
- Net Weight: 63.4 g
- Country of Origin: Romania
- Customs Tariff Number: 85366990
- eCl@ss: 27440205
