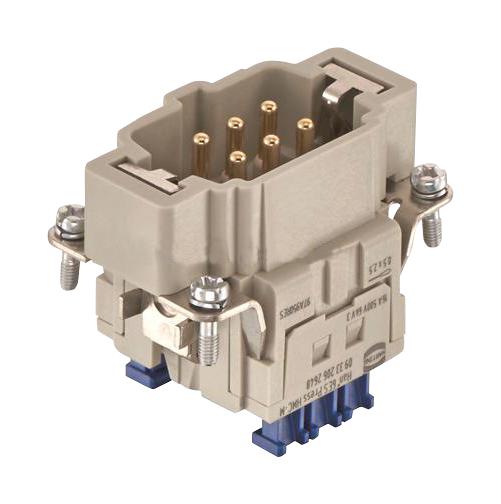

Harting 09332062648 HMC-M Press Insert
The HARTING Han 6ES Press HMC-M insert is a high-quality terminal insert designed for use in demanding industrial environments. Its robust construction and cage-clamp termination ensure secure and reliable connections. The insert supports a conductor cross-section ranging from 0.14 to 2.5 mm² and is rated for a current of 16A and a voltage of 500V. Its compatibility with HMC components and durable polycarbonate housing make it suitable for applications requiring long-term reliability and resistance to harsh conditions. Common applications include power distribution, automation, and heavy machinery.
Harting 09332062648 HMC-M Press Insert Specifications:
- Part Number: 09 33 206 2648
- Specification: Han 6ES Press HMC-M
- HARTING eCatalogue: https://b2b.harting.com/09332062648
- Category: Inserts
- Series: Han ES Press
- Termination method: Cage-clamp termination
- Gender: Male
- Size: 6 B
- Number of contacts: 6
- PE contact: Yes
- Conductor cross-section: 0.14 ... 2.5 mm²
- Conductor cross-section AWG: AWG 26 ... AWG 14
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Insulation resistance: ≥10 Ω
- Contact resistance: ≤3 mΩ
- Limiting temperature: -40 ... +125 °C
- Stripping length: 9 ... 11 mm
- Mating cycles: ≥10,000
- Material (insert): Polycarbonate
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): HMC gold plated
- Material flammability class: 94 V-0
- Specifications: EN 60664-1, IEC 61984
- Approvals: DNV GL
- Packaging size: 1
- Net weight: 55.4 g
- Country of origin: Germany
- European customs tariff number: 85366990
Buy the 09332062648 HARTING HMC-M Press Insert | myMectronic
Purchase the HARTING 09332062648 Han 6ES Press HMC-M insert securely and efficiently online.
