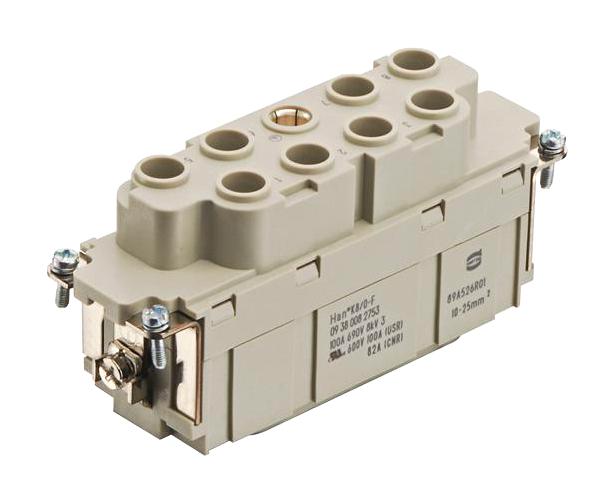

Harting 09380082753 Han K Insert 100 Amp
The HARTING Han K 8/0 Pos. Insert is a critical component in industrial connector systems, providing a secure and reliable connection for power and signal transmission. Designed for demanding applications, it boasts a 100 Amp current carrying capacity and is suitable for conductors ranging from 10 to 25 mm². The insert's female gender and axial screw termination ensure a robust and secure connection. Constructed from durable polycarbonate (PC) with silver-plated copper alloy contacts, it offers excellent electrical conductivity and resistance to environmental factors. Its compliance with RoHS and various industry standards like UL and CSA makes it a versatile choice for a wide range of industrial applications, including power distribution, automation, and heavy machinery.
Harting 09380082753 Han K Insert 100 Amp Specifications:
- Part Number: 09 38 008 2753
- Han K 8/0 Pos. Insert: 100 Amp
- Conductor Cross-Section: 10 ... 25 mm²
- Wire Outer Diameter: ≤11.4 mm
- Rated Current: 100 A
- Rated Voltage: 690 V
- Rated Impulse Voltage: 8 kV
- Rated Current UL: 82 A
- Rated Voltage UL: 600 V
- Rated Current CSA: 100 A
- Rated Voltage CSA: 600 V
- Insulation Resistance: >10 Ω
- Contact Resistance: ≤0.5 mΩ
- Stripping Length: 13 ... 14 mm
- Tightening Torque: 6 Nm @ 10 mm², 6 Nm @ 16 mm², 7 Nm @ 25 mm²
- Limiting Temperature: -40 ... +125 °C
- Mating Cycles: ≥500
- Material (Insert): Polycarbonate (PC)
- Color (Insert): RAL 7032 (pebble grey)
- Material (Contacts): Copper alloy
- Surface (Contacts): Silver plated
- Flammability Class UL 94: V-0
- RoHS Status: compliant with exemption
- China RoHS: 50
- REACH SVHC Substances: Lead
- ECHA SCIP Number: 5dbb3851-b94e-4e88-97a1-571845975242
- Termination Method: Axial screw termination
- Gender: Female
- Size: 24 B
- Number of Contacts: 8
- PE Contact: Yes
- European Customs Tariff Number: 85366990
- eCl@ss: 27440205
