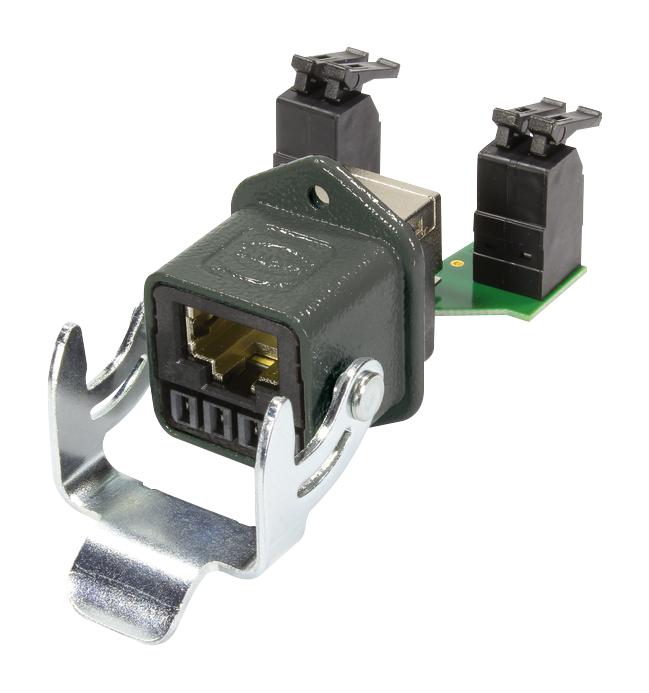

Harting 09452151761 Hybrid Ethernet Connector
The Han 3A RJ45 Hybrid Cat6 connector is a robust, fully shielded hybrid interface designed for Ethernet and power supply applications. It supports transmission speeds of up to 10/100 Mbit/s and 1/2.5/5/10 Gbit/s, compliant with Category 6/6A/Class EA standards up to 500 MHz. Constructed with a durable zinc die cast or plastic housing, it features a reliable 360° shielding contact, a rated current of 15 A, and a voltage of 50 V AC/DC. Suitable for industrial environments, it ensures high mating cycles and complies with UL and RoHS standards, making it ideal for demanding automation and networking setups.
Harting 09452151761 Hybrid Ethernet Connector Specifications:
- Design: Hybrid connector for Ethernet communication and power supply
- Product standard: EC 61076-3-106 (Variant 5)
- Number of contacts: 8+4 (2x4 for Ethernet, 4 for power)
- Transmission rate: 10/100 Mbit/s and 1/2.5/5/10 Gbit/s
- Transmission performance: Category 6/6A/Class EA up to 500 MHz according to ISO/IEC 11801:2002, EN 50173-1
- Shielding: Fully shielded, 360° shielding contact
- Degree of protection: IP65/64
- Mating cycles: Minimum 500
- UL certification: E 102079
- RoHS compliant: Yes
- Lead free: Yes
- Cable diameter (plug): 6 to 12 mm
- Conductor cross section (Ethernet): AWG 27 to AWG 22 (solid and stranded), Max. 1.6 mm diameter
- Conductor cross section (Piercing types): AWG 28/7 to AWG 24/7, Max. 1.05 mm diameter
- Power: IDC contacts 4x 1.5 mm² stranded
- Mating interface external: RJ45 IEC 60603-7 for Ethernet and 4 power contacts
- Mating interface internal: RJ45 IEC 60603-7 for Ethernet and 4 PCB terminals
- Conductor cross section PCB terminal: 0.5 to 2.5 mm² (solid and stranded)
- Housing material: Zinc die cast or plastic depending on type
- Contact material: Copper alloy with gold or tin plating
- Operating temperature: -40°C to +70°C
- Ingress protection: IP65/64
- Dimensions: Suitable for panel thickness up to 9 mm
Buy the HARTING 09452151761 – Reliable Hybrid for Industrial Applications
Purchase the HARTING Hybrid Ethernet Connector today to ensure reliable high-speed data transfer and power supply for industrial automation. Its robust construction, full shielding, and high mating cycles guarantee durability in demanding environments. Perfect for applications requiring fast Ethernet connectivity up to 10 Gbit/s combined with power supply, this connector features IP65/64 protection, UL certification, RoHS compliance, and easy installation. Invest in a proven solution for reliable, long-lasting industrial networking and power integration—order online now and enhance your infrastructure with confidence.
Get HARTING 09452151761 today—built for precision and long-lasting durability in industrial networking.
