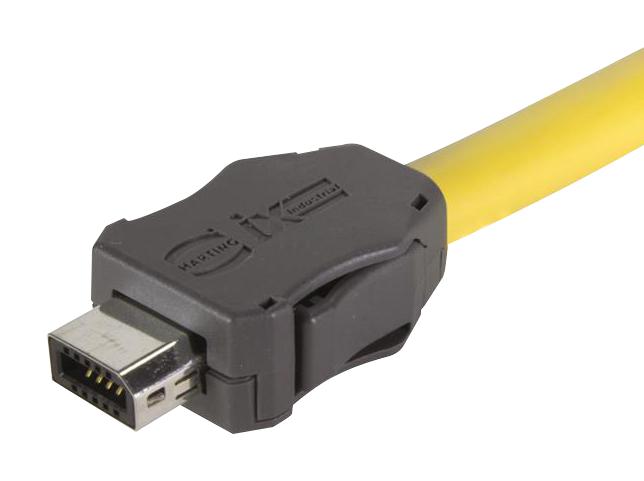

Harting 09451812561XL Industrial Ethernet Connector
The HARTING ix Industrial® Series is a compact and durable Ethernet connector engineered for high-performance networking in space-constrained environments. It supports Cat 6A standard, enabling 10 Gbit/s data transmission with a fully shielded 360° contact for excellent electromagnetic interference immunity. Designed to meet IEC 61076-3-124 standards, it offers robust mechanical stability with 5,000 mating cycles and complies with railway safety standards like EN 50155. This high-quality, shielded, solder connection connector seamlessly integrates data and power, making it ideal for industrial, automation, and transportation applications requiring reliable, vibration-proof Ethernet connectivity.
Harting 09451812561XL Industrial Ethernet Connector Specifications:
- Design: Cable to Board connector for Ethernet communication
- Standard: IEC 61076-3-124 (Type A)
- Contacts: 10 (2x4 for Ethernet + 2 grounding pins)
- Transmission Rate: 10 / 100 Mbit/s to 10 Gbit/s
- Shielding: Fully shielded, 360° contact
- Degree of Protection: IP20
- Mating Cycles: Min. 5,000
- UL/CSA: UL 1977, CSA-C22.2 No. 182.3
- RoHS: Compliant, Lead-Free
- Current Capacity: 145A at 40°C
- Cable Diameter: 5.5 to 7.2 mm
- Electrical: Rated 1.5A per pin, 3A on specific pins, Voltage 50 VAC/60 V DC
- Wire Range: AWG 28-22
- Pin Assignment: Supports 10BASE-T, 100BASE-TX, IGBASE-T, EIA/TIA 568A/B, PROFINET
- Mechanical: Max. insertion/withdrawal force 25 N, 5,000 insertion cycles
- Environmental: Operating -40°C to +85°C, shock and vibration resistant, salt mist, damp heat cyclic, cold, and rapid temperature change resistant
- Materials: Copper alloy contacts with Au over Ni plating, stainless steel shells, UL94 V-0 rated plastics
Buy the HARTING Series ix Industrial Ethernet Connector: 09451812561XL
Purchase your HARTING Series ix Industrial Ethernet connector online today and enhance your automation or industrial networking setup with a compact, robust, and high-speed Ethernet interface. Designed for demanding environments, it offers exceptional electromagnetic interference immunity and mechanical durability, ensuring long-term reliability. Whether upgrading existing systems or building new networks, this connector provides secure, vibration-proof connections with a high mating cycle count. Streamline your project by ordering this industry-leading industrial Ethernet connector now for dependable, high-performance connectivity in diverse applications.
Order your HARTING Series ix Industrial Ethernet connector today and give your industrial communication systems the reliable, high-performance connection they need.
Frequently Asked Questions
Where can I buy Harting 09451812561XL?
You can click on the BUY or RFQ button to purchase 09451812561XL from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09451812561XL?
You can download the 09451812561XL datasheet or visit the Harting website for support.
Who is the manufacturer of 09451812561XL?
Harting
