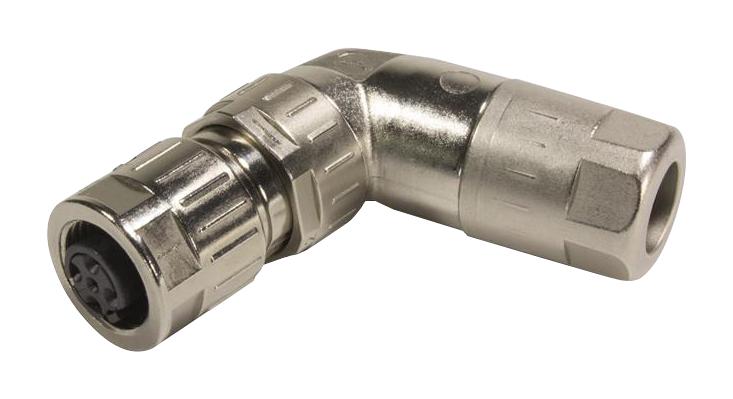

Harting 21038814805 Industrial M12 Connector
The M12 slim angled female X-cod connector features 8 contacts, crimp termination, and shielded design for robust, reliable connections in industrial automation. With a compact angled form, it supports cable diameters of 7 to 8.8 mm, rated for 0.5A and 48V, making it suitable for applications requiring secure field connections. Its IP65/IP67 protection rating safeguards against dust and water ingress when mated, ensuring durability in harsh environments. The connector withstands over 2500 mating cycles, maintains low contact resistance, and supports high-frequency data with Cat 6 compliance up to 500 MHz, ideal for industrial Ethernet setups.
Harting 21038814805 Industrial M12 Connector Specifications:
- Number of contacts: 8
- Termination method: Crimp
- Gender: Female
- Locking type: Screw locking
- Shielding: Shielded
- Rated current: 0.5A
- Rated voltage: 48V
- Contact resistance: 310 mΩ
- Ambient temperature: -40°C to +85°C
- Cable diameter: 7 to 8.8 mm
- Wrench size: A/F 15 mm
- Mating cycles: 2500
- Degree of protection: IP65 when mated; IP67 when mated
- Material (insert): LCP
- Material (hood/housing): Zinc die-cast
- Overvoltage category: CAT. 6, Class Ey up to 500 MHz
- RoHS compliant: Yes
- China RoHS: No
- REACH SVHC: No
Buy the HARTING Series M12 Cable Connector: 21038814805
Purchase your HARTING Series M12 angled female connector today and benefit from its robust shielded design, IP65/IP67 protection, and high-performance data transmission. Ideal for factory automation, industrial Ethernet, and field wiring, this connector ensures durability with over 2500 mating cycles, supports high-frequency signals up to 500 MHz, and withstands harsh industrial environments. Easy to assemble with crimp termination and screw locking, it offers reliable, long-lasting connectivity in demanding industrial settings. Get yours now and enhance your automation project’s reliability.
Order your HARTING Series M12 angled female connector today and ensure reliable, durable connections for industrial automation and Ethernet applications.
Frequently Asked Questions
Where can I buy Harting 21038814805?
You can click on the BUY or RFQ button to purchase 21038814805 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21038814805?
You can download the 21038814805 datasheet or visit the Harting website for support.
Who is the manufacturer of 21038814805?
Harting
