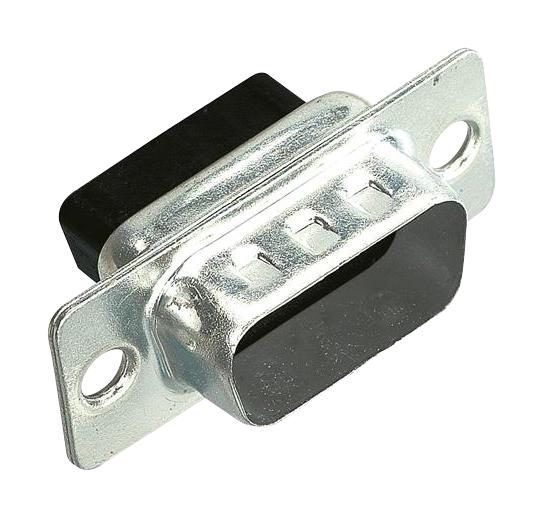

Harting 09565005601 D-Sub Connector
This product is a high-density D-Sub connector set designed for reliable electrical connections in industrial and electronic applications. It features a metal shell with dimples for enhanced durability and secure mounting options, including front and rear mount configurations. The set includes male and female connectors with various contact counts, ranging from 15 to 78 contacts. Precision dimensions ensure easy integration into panels with specific cut-out measurements. Compatible with crimp contacts, it offers robust performance suitable for complex electronic systems requiring dependable data and power transmission.
Harting 09565005601 D-Sub Connector Specifications:
- Number of contacts: 15 to 78
- Connector types: Male and Female
- Shell Material: Metal with dimples
- Mounting options: Front and rear mount
- Panel cut out: Customized per model, specific dimensions detailed
- Dimensions (mm): a varies from 30.9 to 69.4, b varies from 25.0 to 63.5, c: 12.5 or 15.4, f: 2.29 or 2.41
- Contact arrangement: High-density with crimp contacts
- Certification: Not specified but compatible with industrial standards
- Tooling: Refer to chapter 20 for assembly tools and instructions
- Application: Suitable for electronic systems requiring secure high-density connections
Buy the Industrial Equipment 09565005601 – Reliable D-Sub Connectors for Industrial Applications
Purchase this high-density D-Sub connector online today to ensure reliable, secure, and durable electrical connections for your industrial and electronic projects. With precision dimensions, robust metal shells, and flexible mounting options, this connector set is ideal for complex systems requiring high-density contact arrangements. Compatible with crimp contacts, it guarantees signal integrity and consistent performance. Trust in our fast, secure online ordering process and get your connector shipped directly to your workspace quickly to keep your projects on schedule and running smoothly.
Order your Industrial Equipment Series 09565005601 today and give your projects the dependable quality they deserve, ensuring secure and high-performance electrical connections.
Frequently Asked Questions
Where can I buy Harting 09565005601?
You can click on the BUY or RFQ button to purchase 09565005601 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09565005601?
You can download the 09565005601 datasheet or visit the Harting website for support.
Who is the manufacturer of 09565005601?
Harting
