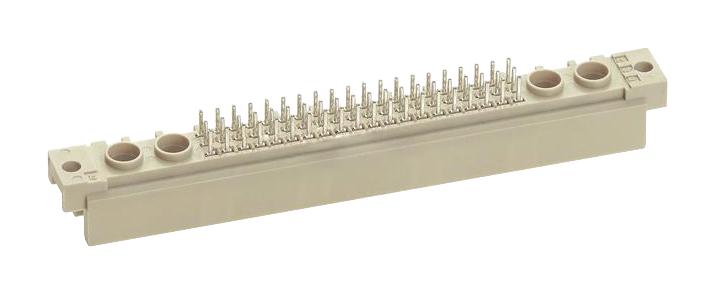

Harting 09731606903 Signal Connector
This DIN signal male connector features special contacts suitable for industrial applications, offering reliable press-in termination, high current capacity, and RoHS compliance. Designed with thermoplastic insulation and copper alloy contacts plated with Sn over Ni, it ensures excellent electrical performance and durability. The connector supports multiple contact configurations, including 2.54 mm signal contacts and special contacts at 7.62 mm. It is suitable for PCB mounting, with recommended drill hole sizes of 1.15 mm ± 0.025 mm, and includes robust resistance to temperature variations from -58°C to 105°C. Its design allows for up to 500 mating cycles, making it ideal for demanding industrial environments.
Harting 09731606903 Signal Connector Specifications:
- Design: TEC 60603-2 types: M invers male
- Number of contacts: 24, 42+6, 60+4, 6+10, 48, 6+10
- Contact spacing: 2.54 mm for signal contacts, 7.62 mm for special contacts
- Test voltage: Max 1,000 V, varies with contact type
- Contact resistance: Max. 10 mΩ
- Insulation resistance: Min. 100 MΩ
- Working current: Up to 2A at 20°C (see derating), special contacts vary
- Temperature range: -58°C to 105°C
- Termination technology: Solder pins, press-in, wirewrap
- Clearance & creepage distance: According to IEC 60603-2 standards
- Insertion and withdrawal force: Max. 6N for 2-pole, 40N for 6-pole, 100N for 12-pole
- Number of mating cycles: 500
- RoHS compliant: Yes
- Lead-free: Yes
- Material: PBT (thermoplastics, glass fiber reinforced 30%)
- Color: RAL 1032 (grey)
- UL 94-V0 classification: Yes
- Insulator material group: Ia (195 ≤ CTI < 400)
- Contact material: Copper alloy with Sn over Ni plating for solder, Ni for press-in and wirewrap
- Plating: Noble metal (Au over PdNi over Ni) for contact zones
Buy the HARTING 09731606903 – Reliable Signal Connectors for Industrial Applications
Enhance your industrial systems with this durable and reliable signal connector. Featuring special contacts, press-in termination, and RoHS compliance, it ensures stable electrical connections and long-term performance. Designed for PCB mounting, it supports multiple contact configurations and withstands extreme temperatures from -58°C to 105°C. The connector supports up to 500 mating cycles, making it ideal for demanding industrial environments. Easy to install using recommended tools, it guarantees safe, efficient, and high-quality electrical connectivity in manufacturing and automation systems.
Buy HARTING 09731606903 now and experience unmatched reliability and performance for your industrial connection needs.
Frequently Asked Questions
Where can I buy Harting 09731606903?
You can click on the BUY or RFQ button to purchase 09731606903 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09731606903?
You can download the 09731606903 datasheet or visit the Harting website for support.
Who is the manufacturer of 09731606903?
Harting
