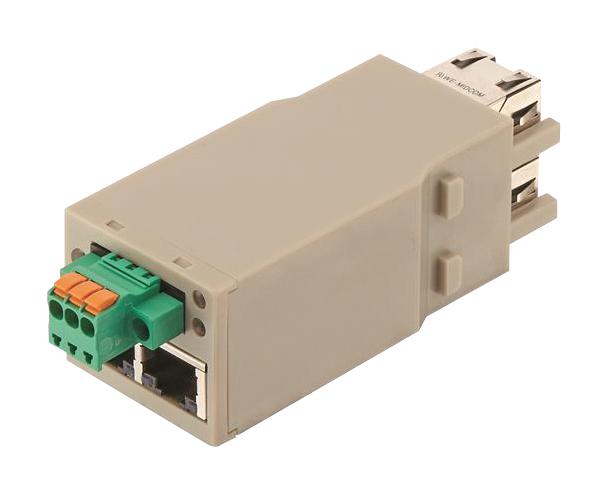

Harting 09801130400 Industrial Ethernet Switch
The Han-Modular® Ethernet Switch US4 is designed for industrial environments, supporting 10/100/1000 MBit/s Ethernet, Fast Ethernet, and Gigabit Ethernet standards. It features four RJ45 ports for connecting multiple Ethernet devices, with plug & play functionality that requires no configuration. The switch is housed in a durable polycarbonate enclosure measuring 34.4 x 29.4 x 86.9 mm, rated IP30 for protection. Its built-in LEDs enable quick diagnostics of power and network activity, making it ideal for demanding industrial networking applications. It complies with IEEE 802.3 standards and supports Energy Efficient Ethernet.
Harting 09801130400 Industrial Ethernet Switch Specifications:
- Number of ports: 4 RJ45 Ethernet ports
- Standards supported: IEEE 802.3, 10/100/1000 MBit/s, Energy Efficient Ethernet
- Maximum cable length: 100 meters (Category 5 cable)
- Cable types: Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP)
- Housing material: Polycarbonate
- Dimensions: 34.4 mm (W) x 29.4 mm (H) x 86.9 mm (D)
- Degree of protection: IP30
- Operating temperature: 0°C to +60°C
- Storage temperature: -40°C to +85°C
- Relative humidity: 30% to 95% (non-condensing)
- Power supply: 24 V DC (non-polar), 12.0V to 30.0V, 110 mA at 24 V DC
- Power connector: 3-pole pluggable contact (24 V; 0 V; functional earth)
- Color: RAL 7032 pebble grey
- Environmental conditions: Suitable for industrial settings, supports DIN 60 529 standards
- Diagnostics: Power and network LEDs for quick status updates
Buy the Han-Modular Series Ethernet Switch US4: 09801130400
Order the Han-Modular Series Ethernet Switch US4 online today and ensure reliable industrial network connectivity. Featuring four RJ45 ports supporting 10/100/1000 MBit/s, it offers plug & play setup with LED diagnostics for quick troubleshooting. Constructed from durable polycarbonate with a compact size of 34.4 x 29.4 x 86.9 mm, it is rated IP30 for protection. Suitable for industrial environments, it operates from 12 to 30 V DC, supporting Energy Efficient Ethernet. Buy now for robust and reliable network solutions.
Get Han-Modular Series Ethernet Switch US4 today—built for industrial networking, supporting fast and Gigabit speeds, with durable design and easy diagnostics.
Frequently Asked Questions
Where can I buy Harting 09801130400?
You can click on the BUY or RFQ button to purchase 09801130400 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09801130400?
You can download the 09801130400 datasheet or visit the Harting website for support.
Who is the manufacturer of 09801130400?
Harting
