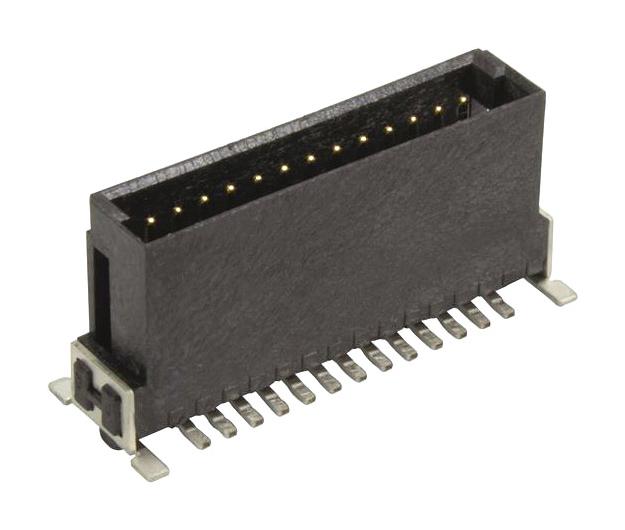

Harting 15130802601000 PCB Male Connector
The har-flex straight male connector is a versatile, RoHS-compliant PCB connector suitable for various applications requiring reliable electrical connections. It features multiple stacking heights of 1.75mm, 3.25mm, and 4.85mm, supporting from 6 to 100 poles with even numbering options. The connector supports soldering on lead-free surfaces like HAL, NiAu, and immersion Sn, and can handle test voltages up to 500V. It ensures low contact resistance less than 25 milliohms, adheres to IEC standards, and withstands temperatures from -55°C to +125°C. Designed for SMT assembly with optimal solder paste deposition, it offers excellent electrical performance, coplanarity, and durability over multiple mating cycles.
Harting 15130802601000 PCB Male Connector Specifications:
- Number of contacts: from 6 to 100 poles with even numbers
- Contact spacing: 1.27mm x 1.27mm (0.050"x0.050")
- Test Voltage: 500V
- Contact resistance: <25 mOhm
- Insulation resistance: see derating diagram
- Working current: according to IEC 60512, at 70°C, 80% derating
- Working temperature range: -55°C to +125°C
- Termination technology: SMT
- Reflow processing temperature: > 217°C for min. 150s
- Solder pad plating: lead-free surfaces like HAL, NiAu, Immersion Sn
- Mating cycles: PL1 ~250, PL2 ~125
- Working voltage: 100V / 150V depending on installation category
- Material: Liquid crystalline polymer insulator, UL94-VO, black color
- Contact material: Copper alloy, plating: Sn with Au over PdNi
- Coplanarity: 6 to 80 pins ±0.1mm, 82 to 100 pins ±0.145mm
