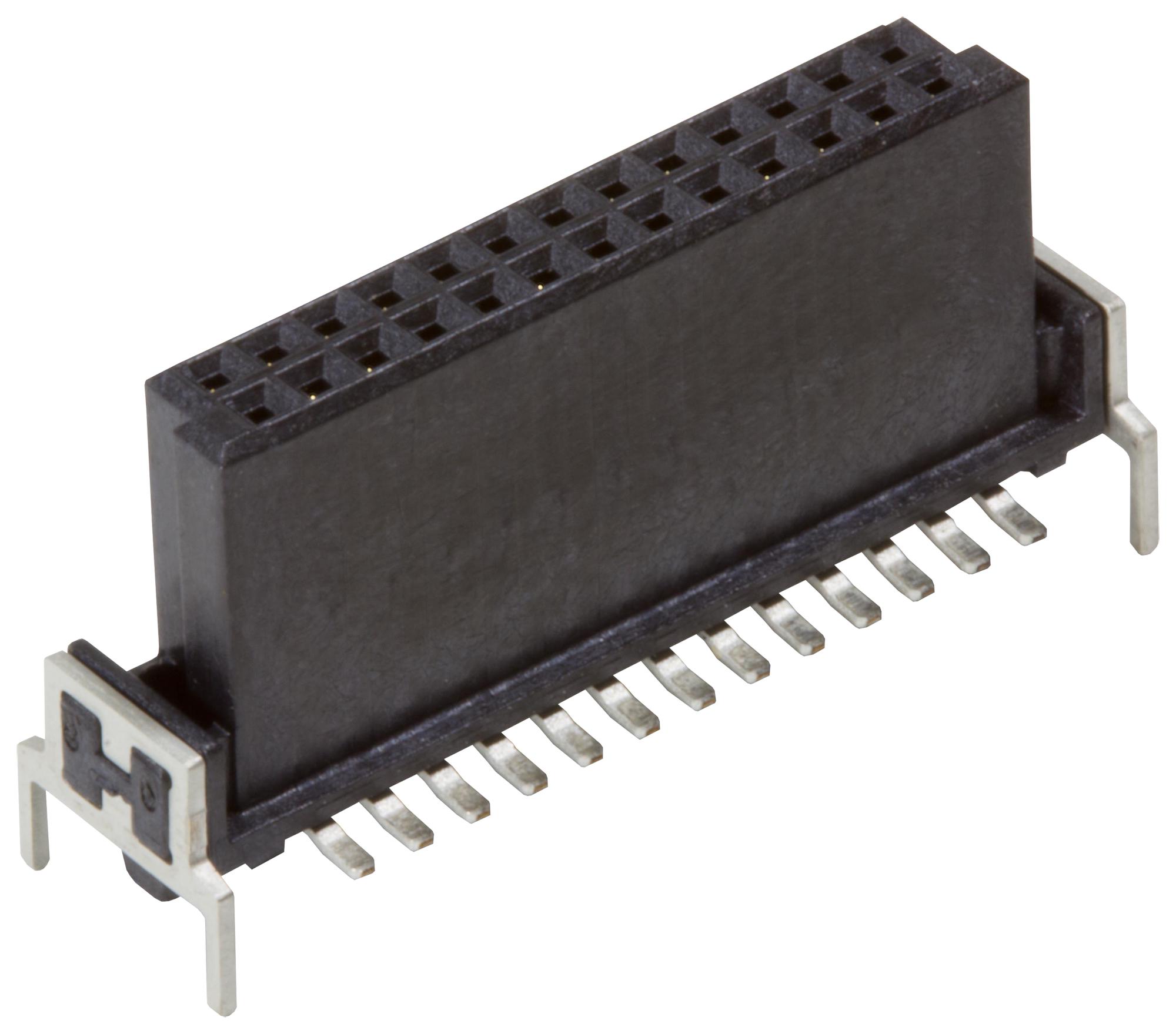

Harting 15220202401000 Electronic Connector
This is a technical connector designed for reliable electronic and electrical connections, featuring multiple contact configurations ranging from 6 to 100 contacts. Crafted with precision, it offers high durability with over 500 mating cycles at PL1 performance level, and all contacts are gold and palladium-nickel plated to ensure excellent conductivity and corrosion resistance. The connector supports various configurations with dimensions tailored for seamless integration into complex electronic systems, providing optimal electrical performance and mechanical stability in industrial, automation, and control applications.
Harting 15220202401000 Electronic Connector Specifications:
- Number of contacts: 6 to 100
- Contact Material: Gold over Palladium-Nickel
- Mating Cycles: >500 (PL1), >250 (PL2)
- Contact Pitch: 2.54 mm, 6.96 mm, 8.89 mm, 10.77 mm, 12.70 mm, 13.31 mm, 15.24 mm, 17.78 mm, 19.66 mm, 21.59 mm, 23.47 mm, 25.40 mm, 28.55 mm, 30.48 mm, 36.83 mm, 48.26 mm, 55.88 mm, 66.65 mm, 68.58 mm
- Plating Thickness: 0.06 μm Au over 0.7+0.2 μm PdNi
- Packaging: Reel with 220 pcs per reel, Sample packs available
- Pick and Place Pad: 6.4401 x 4.5401 mm
- Drilled Hole Diameter: Max 0.015 mm (finished), Max 0.025 mm (copper)
- Application: Electronic, industrial automation, control systems
- Dimensions: Customizable, designed for high-density connections, supports various mounting and insertion options
- Performance Level: Supports >500 mating cycles for high durability
- Temperature Rating & Certifications: Not specified in provided data
Buy the Buy HARTING Electronics Connector Part Number 15220202401000 Online
Enhance your electronic assembly with our durable, high-performance connector, supporting up to 100 contacts and over 500 mating cycles. Featuring gold and palladium-nickel plating, it ensures long-lasting electrical conductivity and corrosion resistance. Designed for industrial automation and control systems, this connector offers easy integration with various configurations and precise dimensions. With optimal mechanical stability, it’s ideal for high-density applications. Buy online today to secure reliable, high-quality connections for your manufacturing and engineering projects, ensuring operational efficiency and longevity.
Order your HARTING Electronics high-mating cycle connector Part Number 15220202401000 today and ensure reliable, durable connections in your industrial automation projects.
Frequently Asked Questions
Where can I buy Harting 15220202401000?
You can click on the BUY or RFQ button to purchase 15220202401000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15220202401000?
You can download the 15220202401000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15220202401000?
Harting
