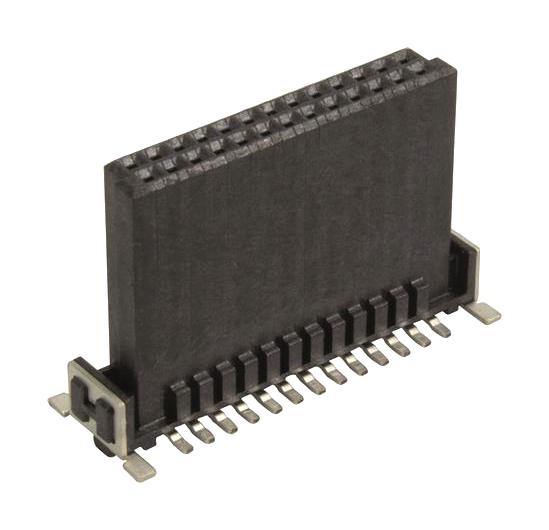

Harting 15230162601000 Female Connector
The har-flex straight female connector is a RoHS-compliant, solderable connector designed for reliable electrical connections in diverse electronic applications. Featuring a stacking height of 6.25mm, 9.05mm, and 13.65mm, it supports up to 100 poles with even numbers. Constructed from liquid crystalline polymer (LCP) with black color, it offers excellent insulation and durability. Contacts are made of copper alloy with tin plating, and sliding contact surfaces are gold over PdNi. Suitable for PCB mounting with lead-free pad surfaces like HAL, NiAu, and immersion Sn, it withstands temperatures from -55°C to +125°C and ensures high mating cycle counts with robust contact resistance and insulation resistance properties.
Harting 15230162601000 Female Connector Specifications:
- Stacking heights: 6.25mm, 9.05mm, 13.65mm
- Number of poles: 6 to 100 (even numbers only)
- Contact spacing: 1.27mm, 2.5mm, 4.0mm depending on model
- Test Voltage: 500V
- Contact Resistance: Less than 25 mOhm
- Insulation Resistance: > 10^4 Megaohms
- Working Current: Based on derating with maximum current capacity per IEC 60512
- Working Temperature Range: -55°C to +125°C
- Termination Technology: SMT
- Reflow Processing Temperature: Min. 150s at > 217°C, minimum 30s at > 240°C
- Material: Liquid crystalline polymer (LCP), black, UL94-VO
- Contact Material: Copper alloy, with Sn plating, Au over PdNi contact surfaces
- Pad Plating: HAL, NiAu, immersion Sn
- Mating Cycles: 250-500 depending on performance level
- Dielectric Clearances & Creepage: Model dependent, up to 0.145mm for 82-100 pins
- Coplanarity: 0.1mm to 0.145mm depending on pin count
Buy the HARTING Series har-flex Female Connector: 15230162601000
Enhance your electronic assembly with this robust, RoHS-compliant har-flex female connector featuring multiple stacking heights and high pin counts. Designed for easy soldering on lead-free PCB surfaces like HAL and immersion Sn, it provides excellent electrical performance confirmed by low contact resistance and high insulation resistance. Withstanding temperatures from -55°C to +125°C, it ensures long-term reliability across diverse operating conditions. Ideal for applications requiring high mating cycles and secure connections, this connector guarantees dependable performance for demanding electronic systems.
Buy HARTING har-flex female connector now and experience unmatched reliability and high mating cycle durability in your electronic applications.
