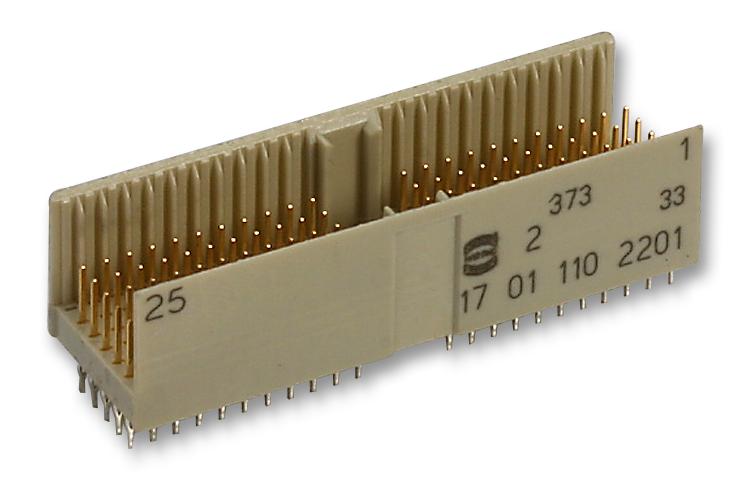

Harting 17011102201 Har-bus HM Male Connector
The HARTING 17011102201 Har-bus HM male connector is a high-performance connector specifically engineered for CompactPCI systems. It provides a reliable connection for a wide range of signal contacts, accommodating both shielded and unshielded configurations. The connector's robust construction and materials ensure durability and consistent performance in harsh industrial environments. It is commonly used in telecommunications equipment, industrial automation, and other applications requiring high-density, reliable connectivity. The connector is RoHS compliant and designed to meet stringent industry standards, ensuring long-term reliability and compatibility.
Harting 17011102201 Har-bus HM Male Connector Specifications:
- Design: IEC 61076-4-101
- No. of contacts: 55 - 220 signal
- Contact spacing: 2.0mm
- Test voltage: 750V AC
- Contact resistance: 20 mOhm max.
- Insulation resistance: 1010 Ohm min.
- Working current: 1 A@70°C
- Temperature range: -55°C … +125°C
- Termination technology: compliant press-in
- Clearance & creepage distance: 0.8 mm each
- Insertion force per contact: 0.75N max.
- Withdrawal force per contact: 0.15N min.
- Mating cycles: 500
- UL file: E102079
- RoHS: Yes
- Leadfree: Yes
- Insulator material: PC(Polycarbonate,glass fiber reinforcement 20%)
- UL classification: UL 94-V0
- Materialgroup: IIIa
- NFF classification: I2, F1
- Contact material: Copper alloy
- Treatment contact zone: Bellcore recommended lubricant
- Plating press-in zone: Ni
- Plating contact zone: Au over PdNi over Ni
- PCB drilled hole Ø: 0.7±0.02 mm
- PCB plated hole Ø: 0.60 – 0.65mm
- Current carrying capacity: Limited by maximum temperature
