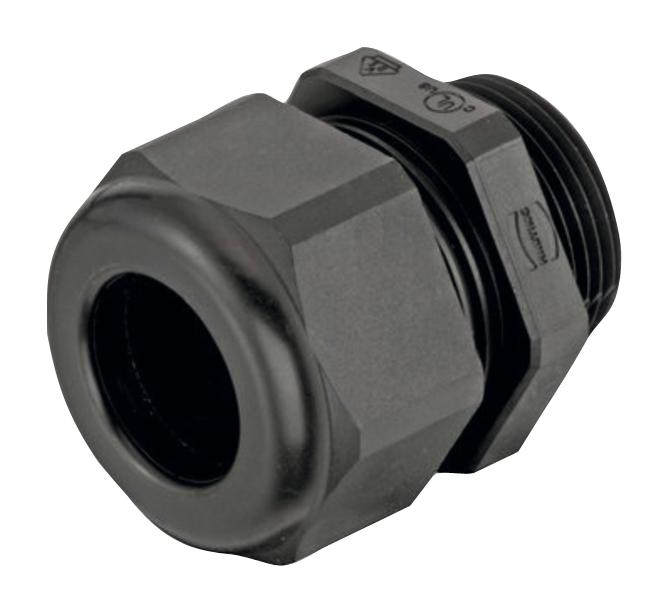

Harting 19000005187 CGM-P Cable Gland Connector
The HARTING Han CGM-P M32x1,5 D.18-25mm cable gland is designed for robust and reliable cable connections in demanding industrial environments. Constructed from polyamide (PA) with a NBR seal, it offers excellent resistance to chemicals, oils, and extreme temperatures. The gland's IP68 and IP69/IPX9K ratings ensure protection against dust and water ingress, making it suitable for harsh conditions. It is commonly used in machinery, automation systems, and power distribution applications where a secure and sealed cable connection is critical. The gland's V-0 flammability rating further enhances its safety profile.
Harting 19000005187 CGM-P Cable Gland Connector Specifications:
- Tightening torque: ≤6.5 Nm (depending on the cable and the seal insert used)
- Wrench size: 42
- Limiting temperature: -40 ... +100 °C
- Degree of protection IEC 60529: IP68 / IP69 / IPX9K
- Size: M32
- Clamping range: 18 ... 25 mm
- Width across corners: 42 mm
- Material (seal): NBR
- Material (cable glands): Polyamide (PA)
- Colour (accessories): RAL 9005 (jet black)
- Material flammability class UL 94: V-0
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH Annex XIV substances: Not contained
- REACH SVHC substances: Not contained
- Approvals: DNV GL
- UL / CSA: UL 514B QCRV.E479780 / CSA-C22.2 No. 18.3 QCRV7.E479780
- Packaging size: 10
- Net weight: 39.42 g
- Country of origin: Germany
- European customs tariff number: 39269097
- eCl@ss: 27144432
Buy the 19 00 000 5187 HARTING CGM-P Cable Gland Connector | myMectronic
Purchase the HARTING 19 00 000 5187 cable gland securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19000005187?
You can click on the BUY or RFQ button to purchase 19000005187 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19000005187?
You can download the 19000005187 datasheet or visit the Harting website for support.
Who is the manufacturer of 19000005187?
Harting
