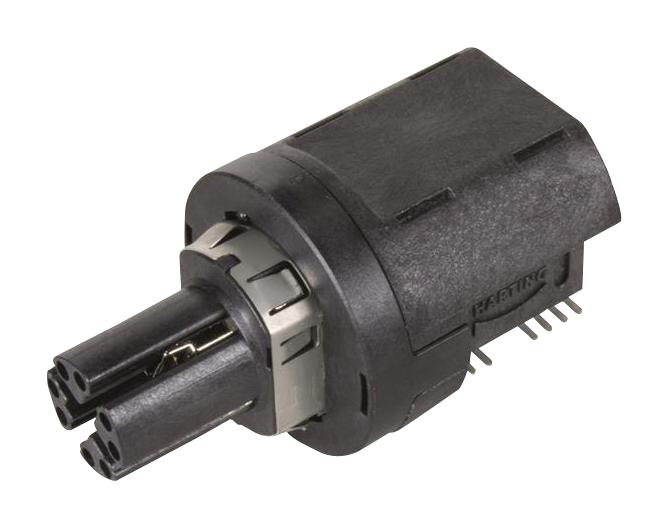

Harting 21033814827 M12 Magnetics Connector
The M12 Magnetics X-Coded Angled POE connector supports 10Gb data transmission with shielded, angled PCB design, integrated transformer, and front mounting for flexible connectivity. Constructed from durable LCP material and brass contacts with gold plating, it ensures reliable performance up to 85°C. It complies with RoHS and REACH standards, offering IP65/IP67 protection when mated. Suitable for high-speed Ethernet applications, this connector features pull-resistant design, reflow soldering capability, and robust mechanical and electrical specifications for industrial networking needs.
Harting 21033814827 M12 Magnetics Connector Specifications:
- Housing Material: LCP
- Contact Material: Brass with gold plating
- Rated current: 0.8A
- Rated voltage: 57V
- Rated impulse voltage: 1.5kV
- Number of contacts: 8
- Gender: Female
- Shielding: Shielded
- Termination method: Reflow soldering (SMT)
- Installation type: Front mounting
- Mating cycles: 2100
- Protection degree: IP65/IP67 when mated
- Data rate: 10 Gbit/s
- Cable compatibility: PCB adapter with integrated transformer
- Temperature range: -40°C to +85°C
- RoHS and REACH compliant: Yes
- Cycle life: 50 insertions
- Standards: IEC 61076-2-109
- Dimensions: Angled design for flexible PCB mounting, appropriate for industrial Ethernet systems
Buy the HARTING Series X-Coded M12 POE Connector: 21033814827
Enhance your industrial networking with the high-performance M12 Magnetics Connector featuring shielded, angled design and 10Gb data speed. This robust, IP65/IP67 rated connector is ideal for PoE applications, providing dependable mechanical and electrical performance. Made from durable materials like LCP and brass with gold plating, it ensures long-term durability. Easy to install with reflow soldering capability, it supports high cycle counts and meets strict RoHS and REACH standards. Perfect for demanding industrial environments requiring reliable, fast Ethernet connections.
Order your HARTING Series X-Coded M12 POE connector today and ensure high-speed, reliable connectivity for industrial Ethernet applications.
Frequently Asked Questions
Where can I buy Harting 21033814827?
You can click on the BUY or RFQ button to purchase 21033814827 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21033814827?
You can download the 21033814827 datasheet or visit the Harting website for support.
Who is the manufacturer of 21033814827?
Harting
