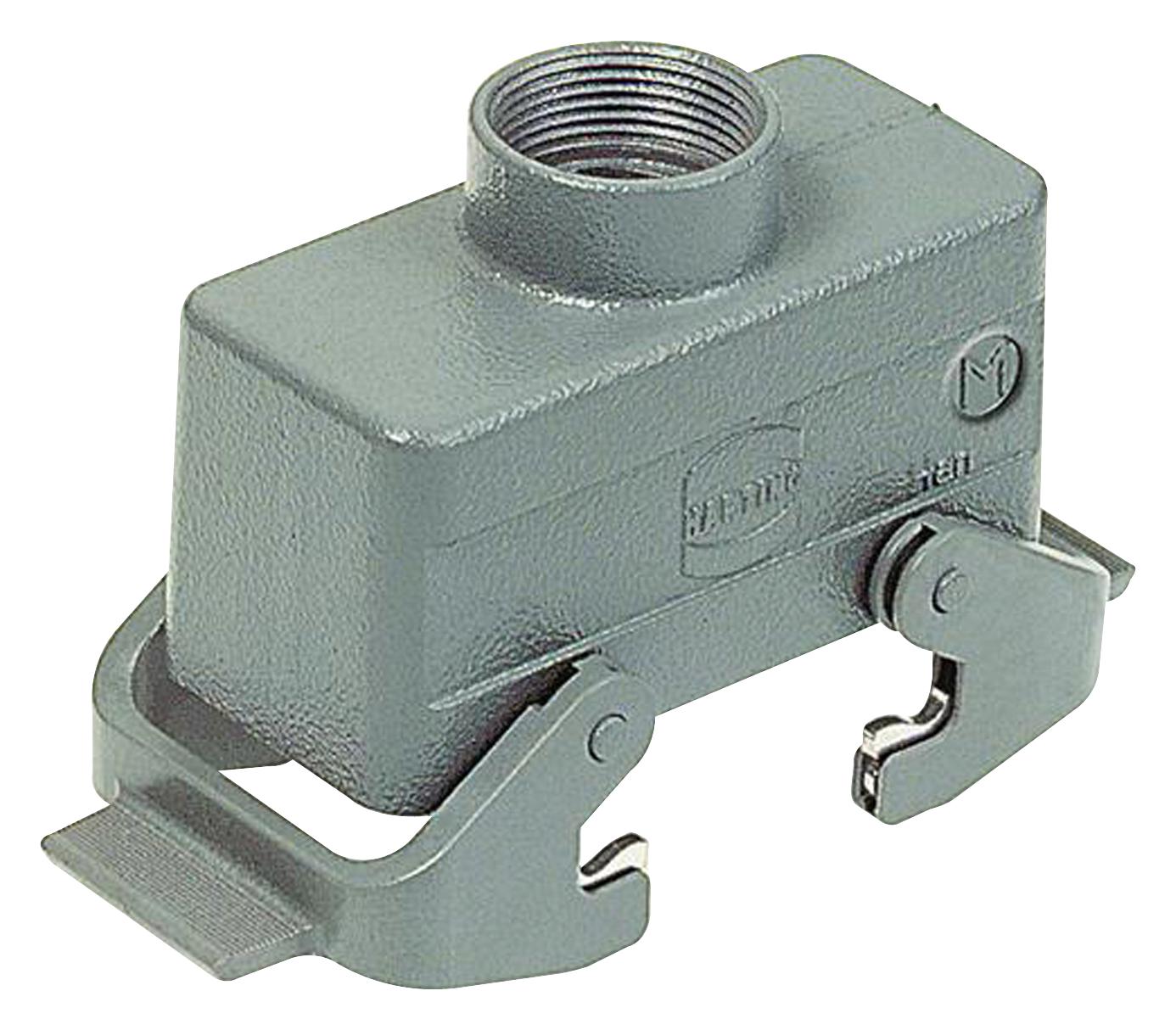

Harting 19300101430 Han 10B Hood Housing
The HARTING Han 10B-gg-QB-M20 hood/housing is a critical component for industrial connector systems, providing a secure and protected connection point. Its aluminum die-cast construction, powder-coated finish (RAL 7037 dust grey), and double locking lever ensure robust performance in demanding environments. The M20 cable entry allows for flexible cable management, while the IP65, IP66, and IP67 ratings offer reliable protection against dust and water ingress. This hood is suitable for a wide range of industrial applications where reliable connector protection is essential. It is RoHS compliant and features a Han-Easy Lock® system for simplified assembly.
Harting 19300101430 Han 10B Hood Housing Specifications:
- Part Number: 19 30 010 1430
- Specification: Han 10B-gg-QB-M20
- Series of hoods/housings: Han®B
- Type of hood/housing: Hood
- Type: Low construction
- Size: 10 B
- Version: Top entry
- Cable entry: 1x M20
- Locking type: Double locking lever (on the hood)
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection IEC 60529: IP65, IP66, IP67
- Type rating UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Material flammability class UL 94: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances: Nickel
- Approvals: DNV GL
- CE: Yes
- Packaging size: 1
- Net weight: 163.38 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
Buy the 19300101430 HARTING Han 10B Hood Housing | myMectronic
Purchase the HARTING Han 10B-gg-QB-M20 hood securely and efficiently through our online platform.
