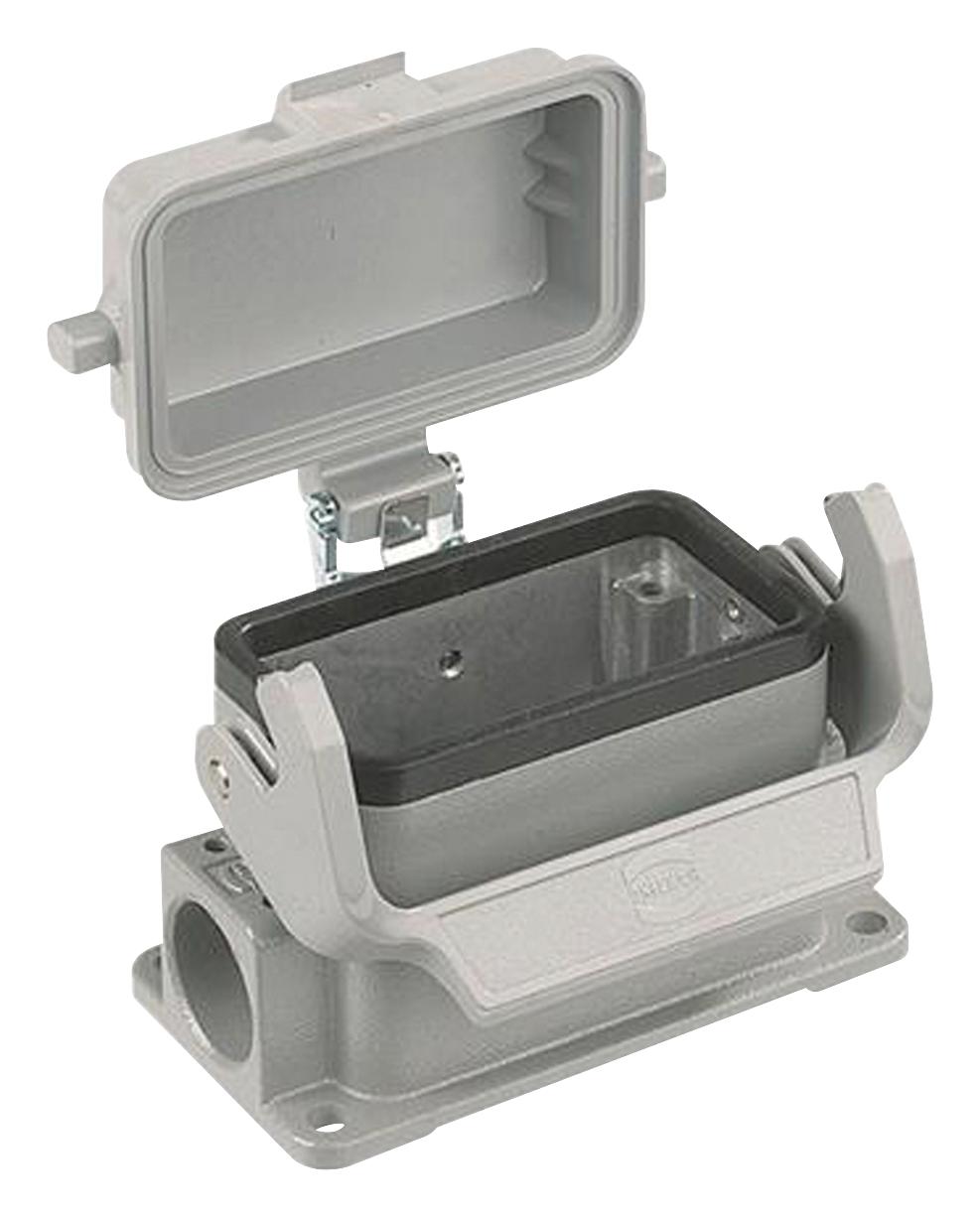

Harting 19300102295 Metal Cover Housing
The HARTING Han B Base SM LC 1 Lever Metal Cover M20 is a robust surface-mounted housing designed for industrial applications. Constructed from aluminum die-cast with a powder-coated finish (RAL 7037), it offers excellent durability and corrosion resistance. The housing features a metal cover for enhanced protection and a single locking lever for secure connections. It is suitable for standard industrial connectors and provides IP65 ingress protection, ensuring reliable performance in harsh environments. Compliance with various standards like UL and CSA further validates its suitability for demanding applications. Please refer to the user documentation for complete and up-to-date information.
Harting 19300102295 Metal Cover Housing Specifications:
- Part Number: 19 30 010 2295
- Specification: Han B Base SM LC 1 Lever Metal Cover M20
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Description of hood/housing: With metal cover
- Type: Low construction
- Cable entry: 2x M20
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
- California Proposition 65: Nickel, Naphthalene
- Approvals: DNV GL
- UL/CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 287 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
