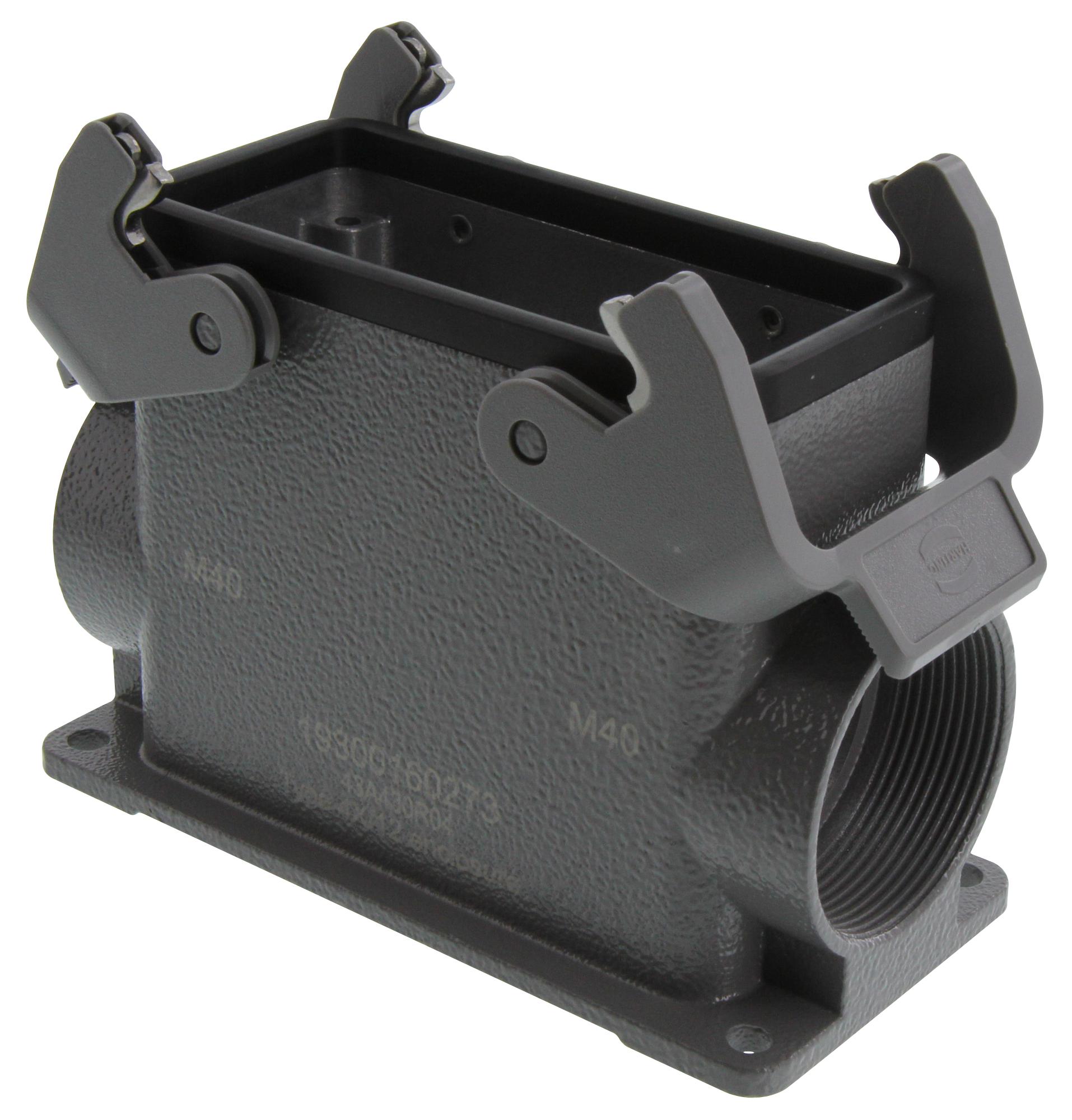

Harting 19300160273 Han B Surface Mount Housing
The HARTING Han B Surface Mount Housing is a high-quality enclosure designed for industrial connector applications. Constructed from die-cast aluminum with a powder-coated finish (RAL 7037), it offers excellent durability and corrosion resistance. The housing features a double locking lever for secure connections and an IP65 degree of protection against dust and water ingress. With two M40 cable entries, it accommodates a variety of cable configurations. This housing is ideal for applications requiring a robust and reliable connector interface in demanding industrial settings, such as automated machinery, power distribution systems, and outdoor equipment.
Harting 19300160273 Han B Surface Mount Housing Specifications:
- Part Number: 19 30 016 0273
- Specification: Han B Base Surf. HC 2 Levers 2 x M40
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Type: High construction
- Size: 16 B
- Version: Side entry
- Cable entry: 2x M40
- Locking type: Double locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65: Lead, Nickel, Naphthalene
- Approvals: DNV GL
- UL CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 350 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
