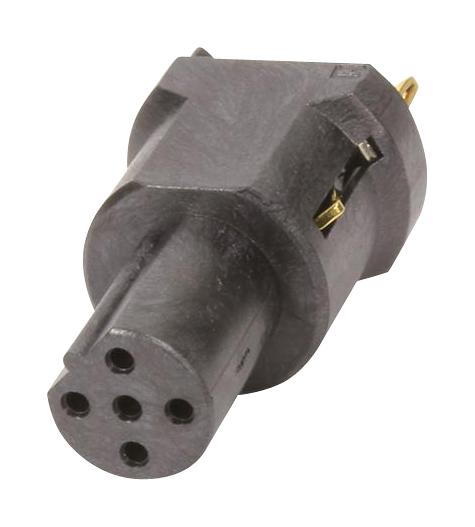

Harting 21033412518 M12 PCB Receptacle Female
The HARTING 21033412518 is a robust M12 PCB receptacle designed for reliable connectivity in industrial applications. This 5-pole, female connector utilizes B-coding and features a shielded design to minimize electromagnetic interference. It is suitable for PCB mounting using THR/SMC termination and is rated for a current of 4A and a voltage of 50V. The connector is manufactured in Germany and complies with RoHS regulations, making it a suitable choice for a wide range of industrial automation, power transmission, and data communication applications. Order separate housings for complete assembly.
Harting 21033412518 M12 PCB Receptacle Female Specifications:
- Part Number: 21 03 341 2518
- M12 PCB receptacle: female b-coded
- Number of poles: 5
- Termination method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Shielding: Shielded
- Coding: B-coding
- Rated current: 4 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Insulation resistance: > 10 Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Overvoltage category: III
- Material (insert): LCP
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- RoHS: compliant with exemption
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications: IEC 61076-2-101
- UL 1977 ECBT2.E102079: UL / CSA
- CSA-C22.2 No. 182.3 ECBT8.E102079: UL / CSA
- Packaging size: 60
- Net weight: 10.7 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440402 PCB connector
