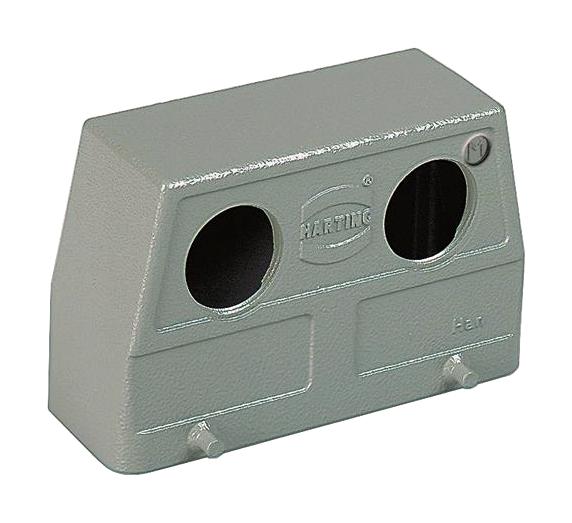

Harting 19300160666 Han B Hood Angled Entry
The HARTING Han B Hood Angled Entry (part number 19300160666) is a high-construction circular connector hood designed for demanding industrial environments. Constructed from die-cast aluminum with a powder-coated finish (RAL 7037 dust grey), it offers excellent protection against dust and water (IP65, IP66, IP67). The hood features a double locking lever for secure connections and angled entry for cable routing flexibility. It is RoHS compliant and certified to various industry standards including UL, CSA, and DNV GL, making it suitable for a wide range of applications requiring reliable and robust connectivity.
Harting 19300160666 Han B Hood Angled Entry Specifications:
- Part Number: 19 30 016 0666
- Specification: Han B Hood Angled Entry 4 Pegs 2x M25
- Series of hoods/housings: Han®B
- Type of hood/housing: Hood
- Type: High construction
- Locking type: Double locking lever
- Size: 16 B
- Version: Angled entry
- Cable entry: 2x M25
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection IEC 60529: IP65, IP66, IP67
- Type rating UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: No
- Approvals: DNV GL
- UL / CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 219 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
