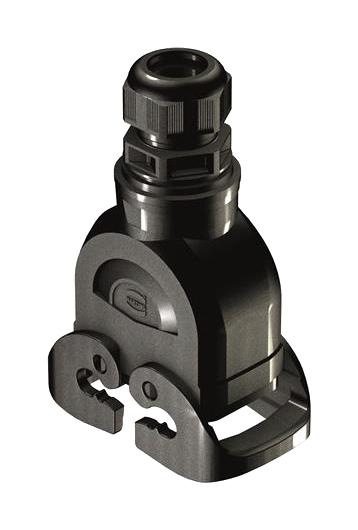

Harting 19431100737 Han-Eco 10B Cable Housing
The HARTING Han-Eco 10B-HCC cable housing is designed for reliable cable-to-cable connections in industrial settings. Constructed from fiber-glass reinforced polyamide, it offers excellent durability and protection against environmental factors. The integrated M32 cable gland simplifies installation and provides a secure seal, while the double locking lever ensures a robust connection. This housing is ideal for applications requiring high reliability, such as automated machinery, power distribution systems, and outdoor installations. It meets standards like EN 45545-2 for railway applications, ensuring safety and performance in critical environments.
Harting 19431100737 Han-Eco 10B Cable Housing Specifications:
- Part Number: 19 43 110 0737
- Specification: Han-Eco 10B-HCC-with DL-M32-glanded
- Series of hoods/housings: Han-Eco®B
- Type of hood/housing: Cable to cable housing
- Description of hood/housing: With integrated cable gland
- Locking type: Double locking lever
- Size: 10 B
- Version: Top entry
- Cable entry: 1x M32
- Limiting temperature: -40 ... +125 °C
- Number of relockings: ≥500
- Degree of protection: IP66
- Clamping range: 13 ... 21 mm
- Material (hood/housing): Polyamide(PA), Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Colour (seal): RAL 9005 (jet black)
- Material (locking): Polyamide(PA), Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability class UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Packaging size: 1
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
Buy the 19431100737 HARTING Han-Eco 10B Cable Housing | myMectronic
Purchase the HARTING Han-Eco 10B-HCC cable housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19431100737?
You can click on the BUY or RFQ button to purchase 19431100737 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19431100737?
You can download the 19431100737 datasheet or visit the Harting website for support.
Who is the manufacturer of 19431100737?
Harting
