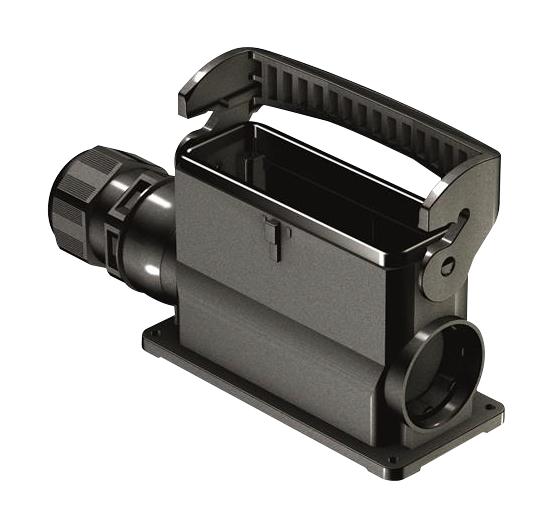

Harting 19431240252 Han-Eco 24B Housing
The HARTING Han-Eco 24B-HSM1-with SL-M32-glanded housing is a surface-mounted connector designed for demanding industrial applications. Constructed from fiber-glass reinforced polyamide, it offers excellent durability and protection against environmental factors. The integrated cable gland simplifies installation and provides a secure, sealed connection. This housing is suitable for applications requiring robust connectivity and protection, such as automated machinery, power distribution systems, and outdoor equipment. It meets stringent safety standards including EN 45545-2 R22, R23, and R24, making it suitable for railway applications.
Harting 19431240252 Han-Eco 24B Housing Specifications:
- Part Number: 19 43 124 0252
- Specification: Han-Eco 24B-HSM1-with SL-M32-glanded
- Locking Type: Single locking lever
- Size: 24 B
- Version: Side entry
- Cable Entry: 1x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 13 ... 21 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Colour (seal): RAL 9005 (jet black)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Material Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
- IEC 61984 Specifications: Compliant
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
