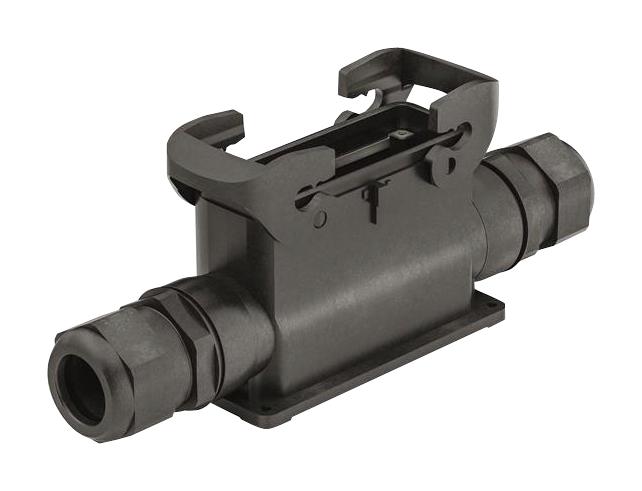

Harting 19431240272 Han-Eco 24B Housing
The HARTING Han-Eco 24B-HSM2 housing is a surface-mounted connector housing designed for demanding industrial environments. Constructed from fiber-glass reinforced polyamide, it offers excellent durability and protection. The integrated DL-M32 cable gland simplifies installation and provides a secure, sealed connection. Suitable for applications requiring robust connectivity and environmental protection, this housing is commonly used in machinery, automation, and power distribution systems. It meets stringent safety standards including EN 45545-2 R22, R23, and R24, making it suitable for railway applications.
Harting 19431240272 Han-Eco 24B Housing Specifications:
- Part Number: 19 43 124 0272
- Specification: Han-Eco 24B-HSM2-with DL-M32-glanded
- Locking Type: Double locking lever
- Size: 24 B
- Version: Side entry
- Cable Entry: 2x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 13 ... 21 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Colour (seal): RAL 9005 (jet black)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Material Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
- IEC Specification: IEC 61984
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
