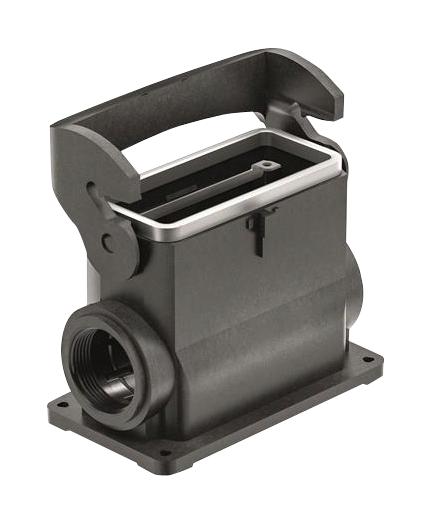

Harting 19432160292 Han-Eco 16B Outdoor Housing
The HARTING Han-Eco 16B Outdoor Housing is a surface-mounted connector housing designed for demanding industrial applications requiring robust and reliable connections. Constructed from fibre-glass reinforced polyamide, it offers excellent mechanical strength and chemical resistance. The housing features a single locking lever, a 16B size, side entry design, and a 2x M32 cable entry, providing flexibility in cable management. It is rated IP66 for protection against dust and water ingress and is suitable for applications requiring compliance with standards like IEC 61984 and EN 45545-2. The housing's robust construction and sealing capabilities make it ideal for use in harsh environments such as industrial automation, transportation, and energy.
Harting 19432160292 Han-Eco 16B Outdoor Housing Specifications:
- Part Number: 19 43 216 0292
- Specification: Han-Eco 16B Outd-HSM2-with SL-M32
- Locking Type: Single locking lever
- Size: 16 B
- Version: Side entry
- Cable Entry: 2x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Colour (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability Class UL 94: V-0
- IEC 61984: Specifications
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
- Packaging Size: 1
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
