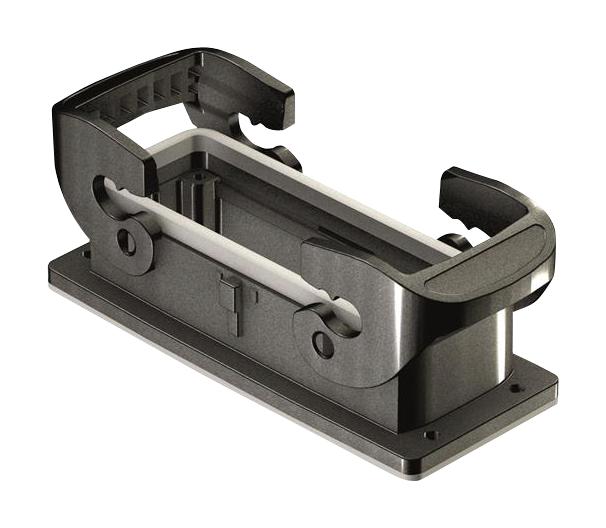

Harting 19432240320 Han-Eco 24B Outdoor Housing
The HARTING Han-Eco 24B Outdoor Housing provides a secure and protected connection point for industrial applications. Constructed from fibre-glass reinforced polyamide, it offers excellent mechanical strength and resistance to environmental factors. The double locking lever mechanism ensures a secure connection, while the IP66 rating protects against dust and water ingress. Compliant with various industry standards including IEC 61984 and EN 45545, this housing is ideal for use in transportation, automation, and energy sectors where reliable connectivity is paramount. Its robust design and ease of installation make it a versatile solution for demanding applications.
Harting 19432240320 Han-Eco 24B Outdoor Housing Specifications:
- Part Number: 19 43 224 0320
- Specification: Han-Eco 24B Outd-HBM-with DL
- Locking Type: Double locking lever
- Size: 24 B
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Colour (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability Class UL 94: V-0
- Specifications IEC: IEC 61984
- EN 45545-2 R22: HL1,HL2,HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
- Packaging Size: 1
- Net Weight: 151.6 g
- Country of Origin: Germany
- Customs Tariff Number: 85389099
