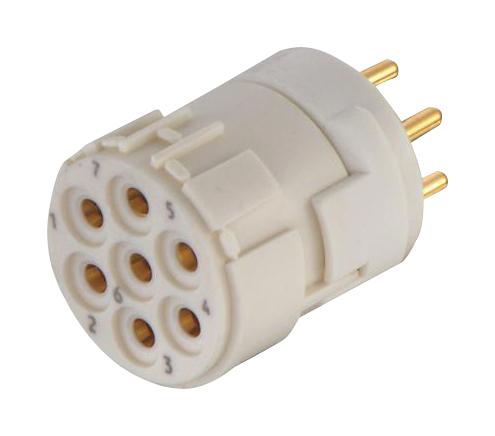

Harting 09151072703 Female Connector Insert
The HARTING Han M23 07 Female -soldered contact insert is a robust and reliable solution for industrial connector applications. Designed for use with compatible Han M23 housings, this insert provides 7 female contacts with PCB solder termination, ensuring a secure and efficient connection. Constructed from polyamide with gold-plated copper alloy contacts, it offers excellent electrical performance and durability. Compliant with RoHS and various industry standards, this connector insert is ideal for applications requiring high reliability and performance in demanding environments.
Harting 09151072703 Female Connector Insert Specifications:
- Part Number: 09 15 107 2703
- Specification: Han M23 07 Female -soldered contact
- Category: Inserts
- Series: Han®M23 Signal
- Element: Inserts
- Termination Method: PCB solder termination
- Gender: Female
- Number of Contacts: 7
- Rated Current: 20 A
- Rated Voltage: 300 V
- Rated Impulse Voltage: 2.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 1010Ω
- Limiting Temperature: -40 ... +125 °C
- Mating Cycles: ≥500
- Material (insert): Polyamide
- Colour (insert): White
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Flammability Class: V-0
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- UL CSA: UL 1977 ECBT2.E235076
- Packaging Size: 5
- Net Weight: 9 g
- Country of Origin: Germany
- Customs Tariff Number: 85366990
- eCl@ss: 27440205
