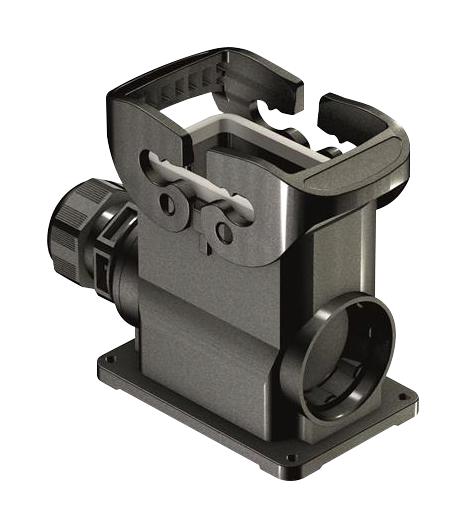

Harting 19433100232 Han-Eco 10B Outdoor Housing
The HARTING Han-Eco 10B Outdoor Housing provides a reliable and secure enclosure for electrical connections in harsh environments. Its surface-mounted design and integrated cable gland simplify installation, while the double locking lever ensures a secure connection. The housing is constructed from fiber-glass reinforced polyamide, providing excellent mechanical strength and resistance to chemicals and UV radiation. Suitable for a wide range of industrial applications requiring robust and protected electrical connections, it meets standards like IEC 61984 and EN 45545-2 for fire safety.
Harting 19433100232 Han-Eco 10B Outdoor Housing Specifications:
- Part Number: 19 43 310 0232
- Specification: Han-Eco 10B Outd-HSM1-w. DL-M32-glanded
- HARTING eCatalogue: https://b2b.harting.com/19433100232
- Category: Hoods/Housings
- Series: Han-Eco®B
- Type: Surface mounted housing
- Description: With integrated cable gland
- Locking Type: Double locking lever
- Size: 10 B
- Version: Side entry
- Cable Entry: 1x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 13 ... 21 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Color (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Color (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Color (locking): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC 61984: Specifications
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
