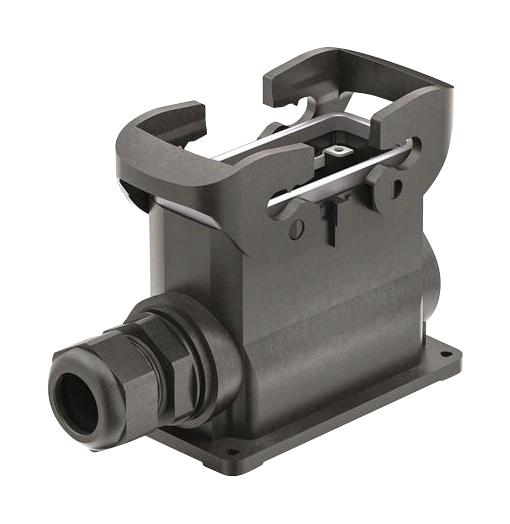

Harting 19433160232 Han-Eco 16B Outdoor Housing
The HARTING Han-Eco 16B Outdoor Housing provides a secure and reliable connection solution for demanding industrial environments. This surface-mounted housing is designed for outdoor use and incorporates a double locking lever for enhanced security. It features a side entry design and an integrated cable gland for simplified cable management and sealing. Constructed from fiber-glass reinforced polyamide, the housing offers excellent mechanical strength and resistance to environmental factors. It is suitable for applications requiring IP66 protection and is compliant with various industry standards including EN 45545-2 R22, R23, and R24.
Harting 19433160232 Han-Eco 16B Outdoor Housing Specifications:
- Part Number: 19 43 316 0232
- Specification: Han-Eco 16B Outd-HSM1-w. DL-M32-glanded
- Locking Type: Double locking lever
- Size: 16 B
- Version: Side entry
- Cable Entry: 1x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 13 ... 21 mm
- Material (Hood/Housing): Polyamide, Fibre-glass reinforced
- Color (Hood/Housing): RAL 9005 (jet black)
- Material (Seal): FPM
- Color (Seal): RAL 7001 (silver-grey)
- Material (Locking): Polyamide, Fibre-glass reinforced
- Color (Locking): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Standards: IEC 61984
- EN Standards: EN 45545-2 R22, HL1, HL2, HL3; EN 45545-2 R23, HL1, HL2, HL3; EN 45545-2 R24, HL1, HL2, HL3
Buy the 19433160232 HARTING Han-Eco 16B Outdoor Housing | myMectronic
Purchase the HARTING 19433160232 Han-Eco 16B Outdoor Housing securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19433160232?
You can click on the BUY or RFQ button to purchase 19433160232 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19433160232?
You can download the 19433160232 datasheet or visit the Harting website for support.
Who is the manufacturer of 19433160232?
Harting
