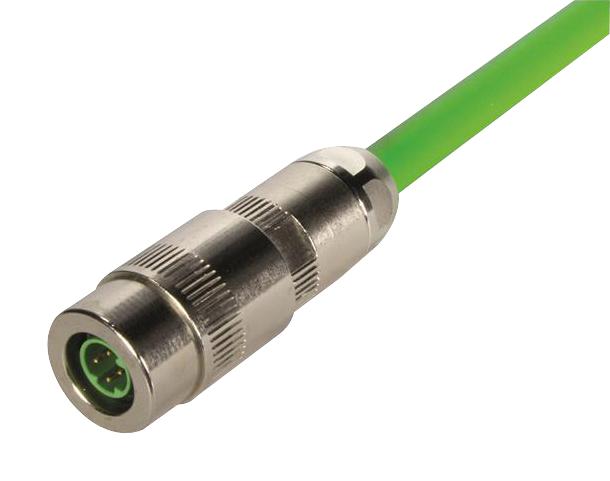

Harting 21021851430 Circular Connector
The M8-PP-CC-IDC-4P-DCOD-M-STR-SHLD is a shielded circular connector designed for industrial automation and data transmission. Featuring 4 contacts with D-coding and a push-pull locking mechanism, it supports Category 5 Class D up to 100 MHz and data rates of 10/100 Mbit/s. Constructed with durable polyamide and zinc die-cast housing, it offers IP65/IP67 protection, withstands temperatures from -40°C to +85°C, and can endure over 2,100 mating cycles. Suitable for cable diameters of 6.2 to 6.8 mm, it is RoHS compliant and ideal for reliable industrial data connectivity.
Harting 21021851430 Circular Connector Specifications:
- Material (insert): Polyamide (PA)
- Material (contacts): Copper alloy with Au over Ni coating
- Material (housing): Zinc die-cast
- Surface (contacts): Au over Ni
- Dimensions: Compatible with cable diameter 6.2 to 6.8 mm
- Temperature Range: -40°C to +85°C
- Rated Current: 4A
- Rated Voltage: 60V
- Pollution Degree: 3
- Insulation Resistance: >10 MΩ
- Contact Resistance: <10 mΩ
- Number of contacts: 4
- Protection Class: IP65/IP67 locked condition
- Mating Cycles: Over 2,100
- Sealing: IP65 / IP67
- Connector Type: Circular, straight
- Coding: D-coding
- Connection Technology: PushPull
- Data Rate: 10/100 Mbit/s
- RoHS: Compliant
- Overvoltage Category: III
Buy the Buy HARTING M8-PP-CC-IDC-4P-DCOD-M-STR-SHLD Online
Purchase the HARTING M8 shielded circular connector online today for your industrial automation projects. Its durable polyamide body and zinc die-cast housing ensure IP65/IP67 protection, supporting reliable data transfer at up to 100 MHz. With a push-pull lock and four contacts, it provides secure and easy connections suitable for harsh environments. Featuring RoHS compliance, withstands over 2,100 mating cycles, and supports cable diameters between 6.2 to 6.8 mm, making it an ideal choice for durable, high-performance industrial connectors.
Order your HARTING M8-PP-CC-IDC-4P-DCOD-M-STR-SHLD straight circular connector today and ensure reliable industrial data transmission with shielded protection.
Frequently Asked Questions
Where can I buy Harting 21021851430?
You can click on the BUY or RFQ button to purchase 21021851430 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21021851430?
You can download the 21021851430 datasheet or visit the Harting website for support.
Who is the manufacturer of 21021851430?
Harting
