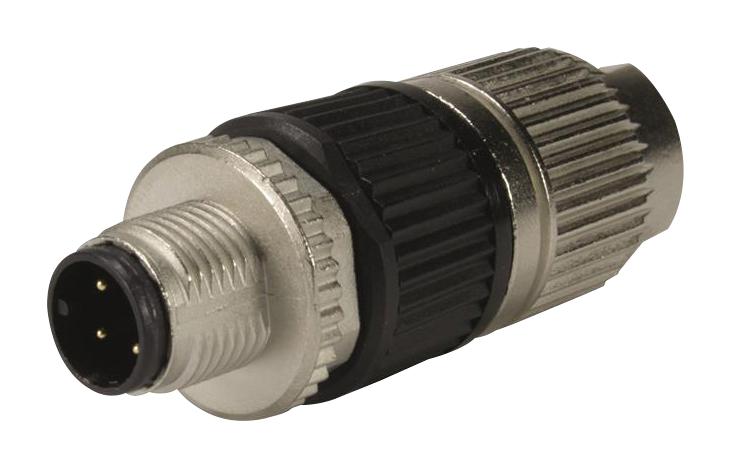

Harting 21032121400 Circular Connector M12
The HARTING 21 03 212 1400 is a robust M12 circular connector designed for reliable data and power transmission in demanding industrial environments. It utilizes the Harax connection technology for secure and efficient connections. With a 3-contact configuration, screw locking mechanism, and IP65/IP67 protection, this connector is suitable for applications requiring durability and resistance to environmental factors. It is RoHS compliant and features a polyamide insert and brass contacts with gold plating, ensuring long-term performance and corrosion resistance.
Harting 21032121400 Circular Connector M12 Specifications:
- Part Number: 21 03 212 1400
- Specification: Circular Connector w. Harax M12 L2/PE M
- Category: Connector
- Series: Circular connectors M12
- Identification: M12-L
- Element: Cable connector
- Straight: Straight
- Termination method: HARAX®connection technology
- Gender: Male
- Locking type: Screw locking
- Shielding: Unshielded
- Number of contacts: 3
- Contact configuration: 3, 4, 5
- Coding: A-coding
- Conductor cross-section: 0.34 ... 0.75 mm²
- AWG: 22 ... AWG 18
- Wire outer diameter: ≤2.6 mm
- Rated current: 6 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Insulation resistance: > 108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Tightening torque: 0.6 Nm
- Wrench size: A/F 17 Knurled screw / knurled nut
- Mating cycles: ≥100
- Degree of protection: IP65 when mated
- Cable diameter: 6 ... 8 mm
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Material (insert): Polyamide
- Material (contacts): Brass
- Surface (contacts): Gold plated
- Material (hood/housing): Polyamide, Zinc die-cast
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications: IEC 61076-2-101
- UL / CSA: UL 1977 ECBT2.E102079, CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging size: 1
- Net weight: 35.8 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440102
