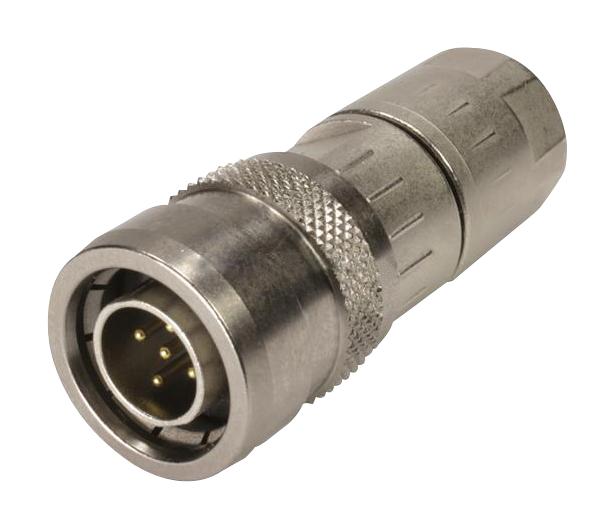

Harting 21033221411 M12 PushPull Connector
The HARTING 21 03 322 1411 is a robust M12 PushPull connector designed for reliable and secure connections in industrial environments. Utilizing HARAX® connection technology, this connector provides a 4-pole configuration with A-coding and shielding for enhanced signal integrity. Its PushPull locking mechanism ensures a secure mating connection, while the IP65/IP67 rating provides protection against dust and water ingress. Constructed with polyamide (PA) and copper alloy materials, this connector is suitable for a wide range of applications including industrial automation, power transmission, and data communication.
Harting 21033221411 M12 PushPull Connector Specifications:
- Part Number: 21 03 322 1411
- Specification: M12-PP-CC-IDC-4P-ACOD-M-STR-SHLD
- Series: Circular connectors M12
- Identification: PushPull
- Element: Cable connector
- Termination method: HARAX®connection technology
- Gender: Male
- Shielding: Shielded
- Number of contacts: 4
- Coding: A-coding
- Locking type: PushPull
- Conductor cross-section: 0.14 mm²
- AWG: 26
- Wire outer diameter: ≤1.6 mm
- Rated current: 4 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Overvoltage category: III
- Insulation resistance: >108Ω
- Contact resistance: ≤10 mΩ
- Limiting temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP65 / IP67
- Cable diameter: 5.7 ... 8.8 mm
- Isolation group: I
- Material (insert): Polyamide (PA)
- Material (contacts): Copper alloy
- Surface (contacts): Au over Ni Mating side
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 substances: Lead, Nickel, Naphthalene
- Specifications: IEC 61076-2-101
- UL / CSA: UL 2238 CYJV2.E302521
- CSA: CSA-C22.2 No. 182.3 CYJV8.E302521
- Packaging size: 1
- Net weight: 60.5 g
- Country of origin: Romania
- European customs tariff number: 85389099
- eCl@ss: 27440102
