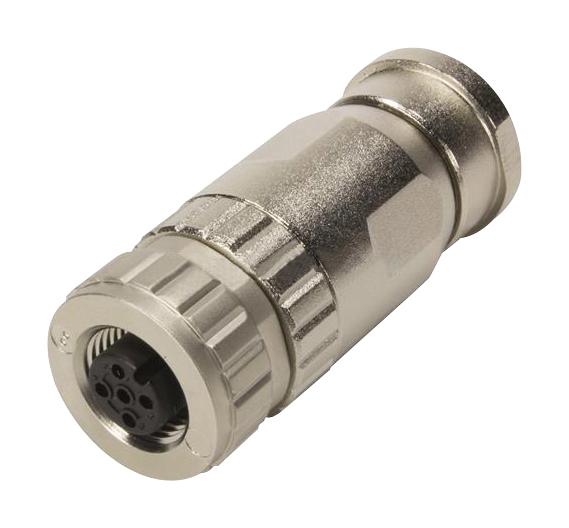

Harting 21033292801 M12 Screw Connector
The HARTING 21 03 329 2801 is a robust M12 screw connector designed for reliable connectivity in industrial environments. This connector offers 8 contacts with A-coding, a female gender, and a straight configuration, making it suitable for various automation and data transmission applications. The shielded design provides protection against electromagnetic interference, ensuring signal integrity. Constructed with polyamide (PA) insert, brass contacts with Au over Ni plating on the mating side, and a zinc die-cast hood/housing, this connector is built to withstand harsh conditions. It is RoHS compliant and features a robust locking mechanism for secure connections.
Harting 21033292801 M12 Screw Connector Specifications:
- Part Number: 21 03 329 2801
- Specification: M12-Screw-8P-ACOD-F-STR-SHLD
- Category: Connectors
- Series: Circular connectors M12
- Element: Cable connector
- Termination Method: Screw termination
- Gender: Female
- Shielding: Shielded
- Number of Contacts: 8
- Coding: A-coding
- Locking Type: Screw locking
- Conductor Cross-section: 0.5 mm² max.
- AWG: AWG 20
- Rated Current: 2 A
- Rated Voltage: 30 V
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Overvoltage Category: III
- Insulation Resistance: >10 Ω
- Contact Resistance: ≤10 mΩ
- Tightening Torque: 0.6 Nm
- Wrench Size: 18
- Limiting Temperature: -30 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Cable Diameter: 4 ... 8 mm
- Isolation Group: I
- Material (insert): Polyamide (PA)
- Material (contacts): Brass
- Surface (contacts): Au over Ni Mating side
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: Not contained
- REACH Annex XIV Substances: Not contained
- REACH SVHC Substances: Lead
- ECHA SCIP Number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 Substances: Lead
- Specifications (IEC): IEC 61076-2-101
- UL/CSA: UL 2238 CYJV2.E302521
- CSA: CSA-C22.2 No. 182.3 CYJV8.E302521
- eCl@ss: 27440102
