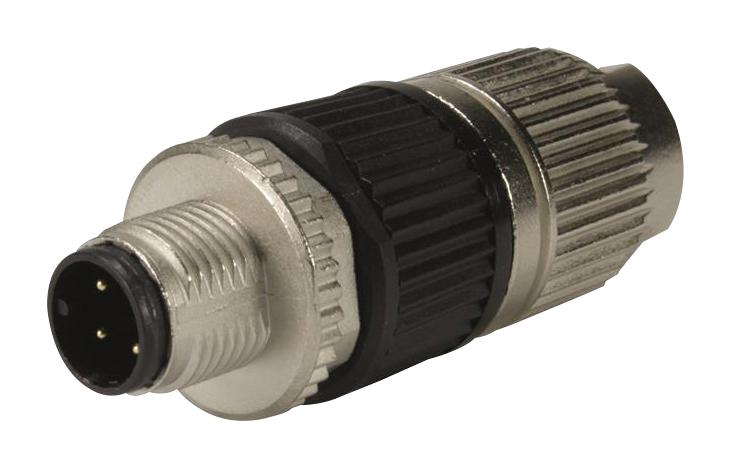

Harting 21032121306 Circular Connector M12
The HARTING 21 03 212 1306 is a robust M12 circular connector designed for reliable data and power transmission in demanding industrial environments. Utilizing Harax connection technology, this connector provides secure and efficient connections. It features a 3-pin configuration, a male gender, and a screw locking mechanism. With an IP65/67 protection rating when mated, it's suitable for applications exposed to dust and moisture. The connector supports a conductor cross-section of 0.34 to 0.75 mm² (AWG 22-18) and is rated for a current of 6A and a voltage of 50V. Constructed with polyamide and brass materials, it offers durability and reliable performance.
Harting 21032121306 Circular Connector M12 Specifications:
- Part Number: 21 03 212 1306
- Specification: Circular Connector w. Harax M12 L 3P M
- HARTING eCatalogue: https://b2b.harting.com/21032121306
- Category: Connector
- Series: Circular connectors M12
- Identification: M12-L
- Element: Cable connector
- Straight: Straight
- Deviating contact configuration: Deviating contact configuration
- Termination method: HARAX®connection technology
- Gender: Male
- Locking type: Screw locking
- Shielding: Unshielded
- Number of contacts: 3
- Contact configuration: 1, 3, 4
- Coding: A-coding
- Conductor cross-section: 0.34 ... 0.75 mm²
- AWG: AWG 22 ... AWG 18
- Wire outer diameter: ≤2.6 mm
- Rated current: 6 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Insulation resistance: > 108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Tightening torque: 0.6 Nm
- Wrench size: A/F 17 Knurled screw / knurled nut
- Mating cycles: ≥100
- Degree of protection: IP65 when mated
- Cable diameter: 6 ... 8 mm
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Material (insert): Polyamide
- Material (contacts): Brass
- Surface (contacts): Gold plated
- Material (hood/housing): Polyamide
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications: IEC 61076-2-101
- UL / CSA: UL 1977 ECBT2.E102079
- Packaging size: 1
- Net weight: 36.5 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440102
