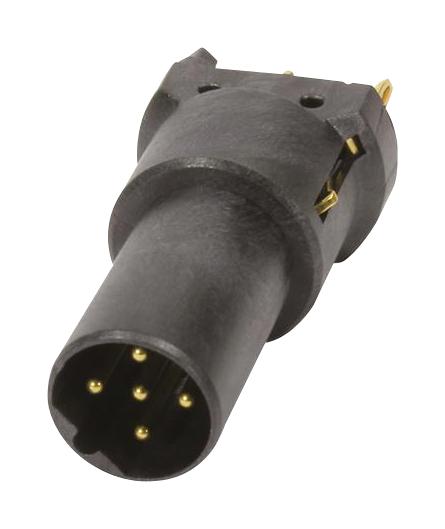

Harting 21033411518 M12 PCB Receptacle Male
The HARTING 21033411518 is a robust M12 PCB receptacle male connector, suitable for a wide range of industrial applications including automation, power transmission, and data communication. Its B-coding ensures compatibility with specific systems, while the 5-pole design allows for multiple signal connections. The connector utilizes THR (Through-Hole Reflow) termination for secure PCB mounting and is shielded to minimize electromagnetic interference. Compliant with RoHS and various industry standards, this connector offers reliable performance and long-term durability.
Harting 21033411518 M12 PCB Receptacle Male Specifications:
- Specification: M12 PCB receptacle male b-coded 5pol.
- HARTING eCatalogue: https://b2b.harting.com/21033411518
- Category: Connector
- Series: Circular connectors M12
- Element: PCB adapter
- Straight: Straight
- Termination method: Reflow soldering termination (THR/SMC)
- Gender: Male
- Shielding: Shielded
- Number of contacts: 5
- Coding: B-coding
- Rated current: 4 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Insulation resistance: > 10 Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Overvoltage category: III
- Material (insert): LCP
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications: IEC 61076-2-101
- UL 1977 ECBT2.E102079: UL 1977 ECBT2.E102079
- UL / CSA: UL / CSA
- CSA-C22.2 No. 182.3 ECBT8.E102079: CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging size: 60
- Net weight: 5.52 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440402 PCB connector
