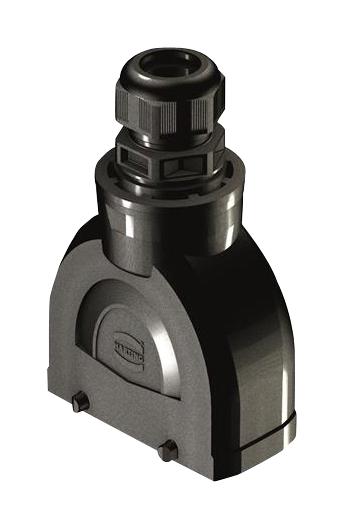

Harting 19431160428 Han-Eco Hood with Gland
The HARTING Han-Eco 16B-HTE-for DL-M40-glanded hood is designed for demanding industrial applications requiring reliable cable connection protection. Constructed from fibre-glass reinforced polyamide, it offers excellent mechanical strength and chemical resistance. The integrated cable gland simplifies installation and provides a secure, sealed connection. Compliant with IEC 61984 and EN 45545 fire safety standards, this hood is suitable for use in a wide range of environments, including those with high vibration and temperature fluctuations. Its robust design ensures long-term reliability and minimizes maintenance requirements.
Harting 19431160428 Han-Eco Hood with Gland Specifications:
- Part Number: 19 43 116 0428
- Specification: Han-Eco 16B-HTE-for DL-M40-glanded
- Locking Type: Double locking lever
- Size: 16 B
- Version: Top entry
- Cable Entry: 1x M40
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 16 ... 28 mm
- Material (Hood/Housing): Polyamide, Fibre-glass reinforced
- Colour (Hood/Housing): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Net Weight: 209.5 g
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Specifications: IEC 61984
- EN Fire Safety: EN 45545-2 R22, R23, R24
