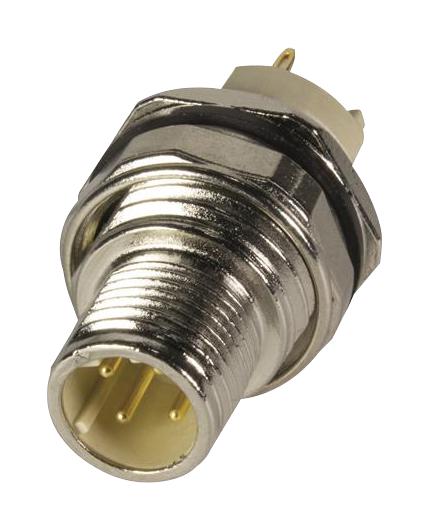

Harting 21033811430 PCB Receptacle Male Back
The HARTING 21 03 381 1430 is a robust, circular M12 PCB receptacle designed for reliable connectivity in industrial environments. This male connector features a D-code configuration with 4 contacts, making it suitable for various data and power transmission applications. Its shielded design and screw locking mechanism ensure secure and interference-free connections. The connector is RoHS compliant and built with high-quality materials like LCP for the insert, copper alloy for the contacts (gold plated), and zinc die-cast for the housing, ensuring durability and long-term performance. It is ideal for applications requiring rear mounting and reflow soldering termination.
Harting 21033811430 PCB Receptacle Male Back Specifications:
- Part Number: 21 03 381 1430
- Specification: PCB receptacle male back D-cod 4-pole
- HARTING eCatalogue: https://b2b.harting.com/21033811430
- Category: Connector
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (THR/SMC)
- Gender: Male
- Locking Type: Screw locking
- Shielding: Shielded
- Number of Contacts: 4
- Coding: D-coding
- Rated Current: 4 A
- Rated Voltage: 50 V
- Rated Impulse Voltage: 2.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Transmission Characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage Category: III
- Isolation Group: I (600 ≤ CTI)
- Material (Insert): LCP
- Material (Contacts): Copper alloy
- Surface (Contacts): Gold plated
- Material (Hood/Housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications (Standards): IEC 61076-2-101
- UL Number: UL 1977 ECBT2.E102079
- CSA Number: CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging Size: 60
- Net Weight: 24.5 g
- Country of Origin: Germany
- European Customs Tariff Number: 85366990
- eCl@ss: 27440402 PCB connector
Buy the 21 03 381 1430 HARTING PCB Receptacle Male Back | myMectronic
Purchase the HARTING 21 03 381 1430 PCB receptacle securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Harting 21033811430?
You can click on the BUY or RFQ button to purchase 21033811430 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21033811430?
You can download the 21033811430 datasheet or visit the Harting website for support.
Who is the manufacturer of 21033811430?
Harting
