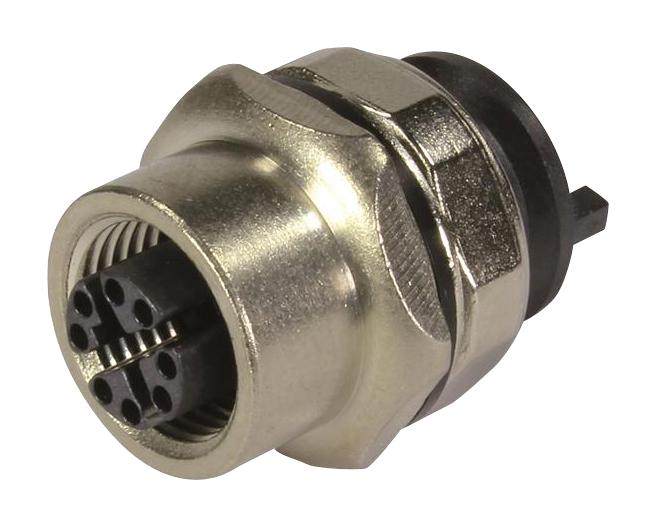

Harting 21033812803 M12 CAT5 Straight Connector
The HARTING 21 03 381 2803 M12 CAT5 Straight Connector is a high-performance connector designed for reliable data transmission in demanding industrial environments. It utilizes a robust M12 circular form factor with a straight PCB adapter design, making it suitable for front mounting applications. The connector features a screw locking mechanism and push-pull locking for secure connections, and is shielded to minimize interference. It supports Cat. 5 Class D up to 100 MHz, making it suitable for Ethernet and other high-speed data applications. Constructed with LCP for the insert, copper alloy for the contacts (gold plated), and zinc die-cast for the hood/housing, this connector offers excellent durability and performance. It is RoHS compliant with exemptions for copper alloy containing up to 4% lead by weight.
Harting 21033812803 M12 CAT5 Straight Connector Specifications:
- Part Number: 21 03 381 2803
- Specification: M12 CAT5 Bu gerade VWM
- Category: Connector
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Locking Type: Screw locking, PushPull
- Shielding: Shielded
- Number of Contacts: 8
- Coding: X-coding
- Rated Current: 0.5 A
- Rated Voltage: 50 V
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Transmission Characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage Category: III
- Isolation Group: I (600 ≤ CTI)
- Material (Insert): LCP
- Material (Contacts): Copper alloy
- Surface (Contacts): Gold plated
- Material (Hood/Housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications (Standards): IEC 61076-2-109, UL 1977 ECBT2.E102079, CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging Size: 60
- Net Weight: 25.36 g
- Country of Origin: Germany
- European Customs Tariff Number: 85444290
- eCl@ss: 27440402
