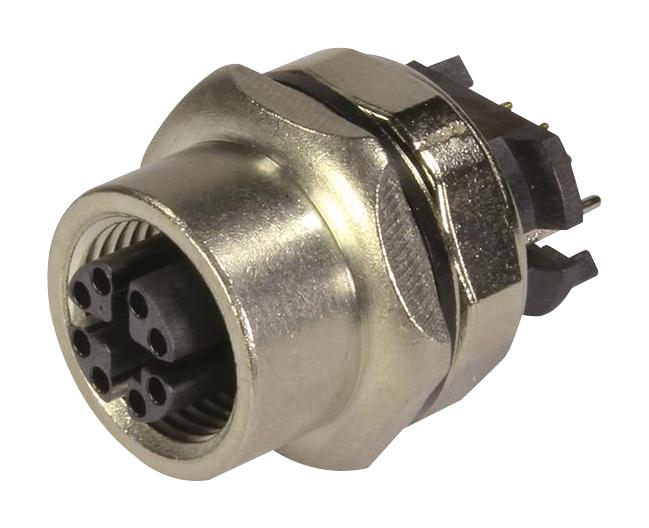

Harting 21033812813 M12 Cat6A Straight Connector
The HARTING 21 03 381 2813 is a robust M12 Cat6A connector specifically engineered for PCB integration. Its straight design and THR (Through-Hole Reflow) termination method simplify assembly processes. The connector offers reliable data transmission with its shielded construction and screw locking mechanism, ensuring secure connections in demanding industrial applications. It is designed to meet the requirements of Cat. 6A Class EA up to 500 MHz and is suitable for a wide range of automation and networking applications.
Harting 21033812813 M12 Cat6A Straight Connector Specifications:
- Part Number: 21 03 381 2813
- Specification: M12 Cat6A Bu gerade VWM
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Locking Type: Screw locking, PushPull
- Shielding: Shielded
- Number of Contacts: 8
- Coding: X-coding
- Rated Current: 0.5 A
- Rated Voltage: 50 V
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Transmission Characteristics: Cat. 6A Class EA up to 500 MHz
- Overvoltage Category: III
- Isolation Group: I (600 ≤ CTI)
- Material (Insert): LCP
- Material (Contacts): Copper alloy
- Surface (Contacts): Gold plated
- Material (Hood/Housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications (Standards): IEC 61076-2-109, UL 1977 ECBT2.E102079, CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging Size: 60
- Net Weight: 27.4 g
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
- eCl@ss: 27440402
