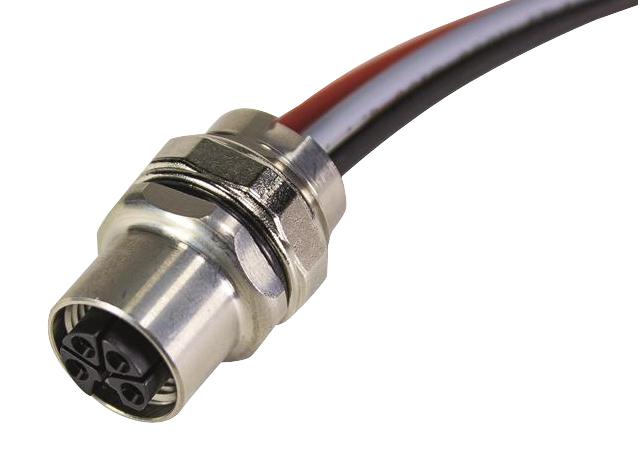

Harting 21035992506 industrial feed-through connector
The HARTING PFT female front L-coded connector featuring a 2.5mm? contact size is designed for industrial automation and equipment applications. It is unshielded, with a screw locking mechanism, and rated for 16A and 63V. This connector withstands over 10 mating cycles, operates within -40°C to +85°C, and provides IP65/IP67 protection levels. Constructed with zinc die-cast housing, copper alloy contacts plated in gold, and polyamide insulation, it ensures durability, electrical safety, and reliable connectivity in harsh environments, suitable for panel feed-through applications with front mounting. The connector is compliant with IEC standards and comes in a pack of one.
Harting 21035992506 industrial feed-through connector Specifications:
- Contact Size: 2.5 mm?
- Contact Material: Copper alloy, gold plated
- Insulation Material: Polyamide
- Housing Material: Zinc die-cast
- Rated Current: 16A
- Rated Voltage: 63V
- Rated Impulse Voltage: 1.5kV
- Ambient Temperature: -40°C to +85°C
- Tightening Torque: 2 Nm
- Protection Level: IP65/IP67
- Number of Mating Cycles: 2100
- Overvoltage Category: Ui 1 (600 < CTI)
- Pollution Degree: 3
- Conductor Range: AWG 14, 2.5 mm?
- Wrench Size: Not specified
- Certification: IEC 61076-2-111
- Net Weight: 51.89 g
- Country of Origin: Romania
Buy the HARTING Series PFT Female Front L-coded Connector: 21035992506
Enhance your electrical assembly with the HARTING Series PFT female front L-coded connector. Designed for robust panel feed-through applications, it features a screw locking mechanism, durable zinc die-cast housing, and gold-plated copper alloy contacts for reliable connections. Rated for 16A and 63V, it withstands temperatures from -40°C to +85°C and offers IP65/IP67 protection, ensuring longevity in harsh environments. Perfect for automation systems, this connector guarantees safety and durability with IEC compliance and a proven number of mating cycles.
Order your HARTING Series PFT Female Front L-coded 2.5mm? connector today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Harting 21035992506?
You can click on the BUY or RFQ button to purchase 21035992506 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21035992506?
You can download the 21035992506 datasheet or visit the Harting website for support.
Who is the manufacturer of 21035992506?
Harting
