Harting 21035992515 Power Connector

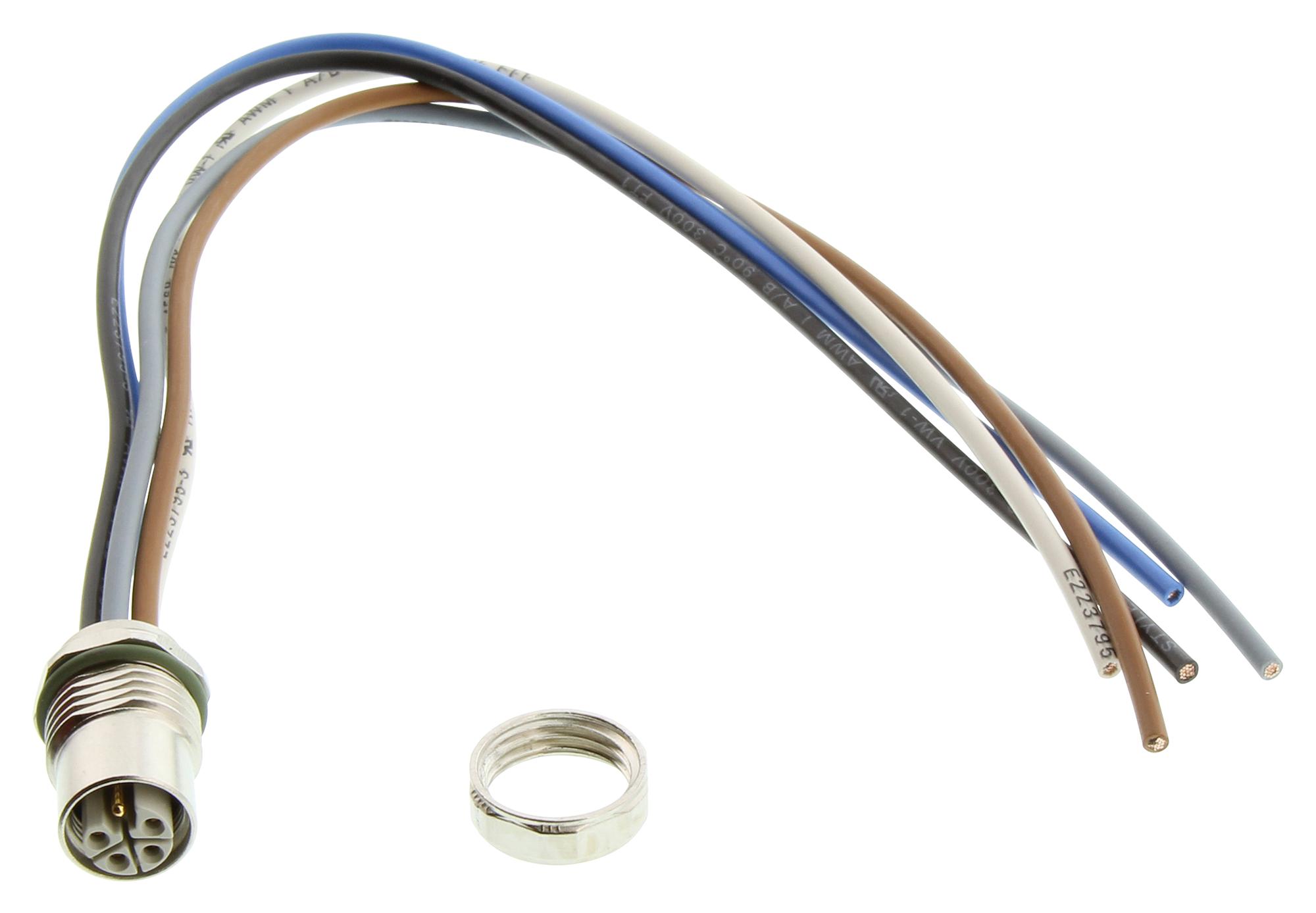

The M12 POWER PFT female L-coded rear connector by HARTING is designed for robust industrial applications. Featuring screw locking and unshielded construction, it offers four contacts with a 2.5mm² conductor cross-section (AWG 14), rated at 16A and 63V. Suitable for rear panel mounting, it withstands temperatures from -40°C to +85°C. With IP65/IP67 protection, it ensures durability in harsh environments. Made of polyamide with gold-plated copper alloy contacts, it guarantees reliable electrical connections with up to 2100 mating cycles. Ideal for automation and power distribution systems.
Harting 21035992515 Power Connector Specifications:
- Category: Connector
- Series: Circular connectors M12
- Identification: M12 Power
- Element: Panel feed through
- Version: Female, screw locking
- Shielding: Unshielded
- Number of contacts: 4
- FE contact: Yes
- Coding: L-coding
- Conductor cross-section: 2.5mm²
- Conductor cross-section AWG: 14
- Rated current: 16A
- Rated voltage: 63V
- Rated impulse voltage: 1.5kV
- Pollution degree: 3
- Insulation resistance: > 10^8 ohms
- Contact resistance: < 10 milliohms
- Ambient temperature: -40°C to +85°C
- Tightening torque: 2Nm
- Wrench size: AIF 20
- Mating cycles: 2100
- Degree of protection: IP65/IP67
- Overvoltage category: Ui 1 (600<CTI)
- Isolation group: 30 ohms
- Material (insert): Polyamide
- Color: Grey
- Material (contacts): Copper alloy, gold plated
- Material (hood/housing): Zinc die-cast
- Specifications and approvals: IEC 61076-2-111
- Net weight: 48.99 grams
- Country of origin: Romania
- European customs tariff number: 85366990
Buy the HARTING 21035992515 – Reliable Power Connector for Industrial Applications
Get the HARTING Power Connector with L-coding and rear mounting capabilities. Designed for industrial power distribution, it offers IP67 protection, high durability, and reliable electrical connections. With a rated current of 16A and voltage of 63V, it withstands harsh environments from -40°C to +85°C. Crafted with high-quality materials including gold-plated copper alloy contacts and zinc die-cast housing, this connector ensures longevity and safety. Perfect for automation systems and manufacturing setups, buy online today for robust performance.
Buy HARTING 21035992515 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Harting 21035992515?
You can click on the BUY or RFQ button to purchase 21035992515 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21035992515?
You can download the 21035992515 datasheet or visit the Harting website for support.
Who is the manufacturer of 21035992515?
Harting
