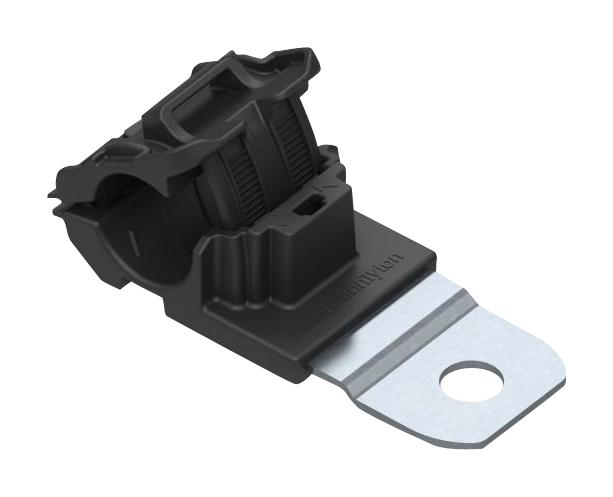

HellermannTyton 15101671 Ratchet P-Clamp
The HELLERMANNTYTON 151-01671 Ratchet P-Clamp is designed for securing wires, cables, and hoses in a variety of industrial settings. Its one-piece ratchet closure allows for easy installation and adjustment, while the impact-modified PA66 material ensures long-term durability. The clamp's interior guides and centers the bundle, preventing pinching, and the easy-release feature enables quick adjustments and maintenance without the need for tools. This makes it an ideal choice for applications requiring frequent adjustments or maintenance.
HellermannTyton 15101671 Ratchet P-Clamp Specifications:
- Local Order Number: 151-01671
- Type: RCB180SM6
- Color: Black (BK)
- Minimum Tensile Strength (Imperial): 100.0lbs
- Minimum Tensile Strength (Metric: 445.0N
- Length L (Imperial): 4.57"
- Length L (Metric): 116.2mm
- Length L2 (Imperial): 3.27"
- Fixation Method: Screw Mounting
- Length L2 (Metric): 83.1mm
- Variant: 180° Short
- Width W (Imperial): 1.37"
- Width W (Metric): 34.9mm
- Cable Tie Width Max. (Imperial): 0.52"
- Cable Tie Width Max. (Metric): 13.2mm
- Width W2 (Imperial): 1.181"
- Width W2 (Metric): 30.0mm
- Bundle Diameter Min. (Imperial): 0.5"
- Bundle Diameter Min. (Metric): 12.7mm
- Bundle Diameter Max. (Imperial): 0.77"
- Bundle Diameter Max. (Metric): 19.5mm
- Mounting Hole Diameter D (Imperial): 0.256"
- Mounting Hole Diameter D (Metric): M6
- Mounting Hole Centers (Imperial): 2.08"
- Stud Size (Metric): M6
- Material: Steel (ST)
- Material Shortcut: ZN
- Flammability: UL 94 HB
- Operating Temperature: -40°F to +221°F (-40°C to +105°C)
- Stamping Material: Steel (ST)
- Package Quantity (Imperial): 5
- Package Quantity (Metric): 5
- Customs Number(Schedule B): 3926909987
Buy the 151-01671 HELLERMANNTYTON Ratchet P-Clamp | myMectronic
Purchase the HELLERMANNTYTON 151-01671 Ratchet P-Clamp securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy HellermannTyton 15101671?
You can click on the BUY or RFQ button to purchase 15101671 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 15101671?
You can download the 15101671 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 15101671?
HellermannTyton
