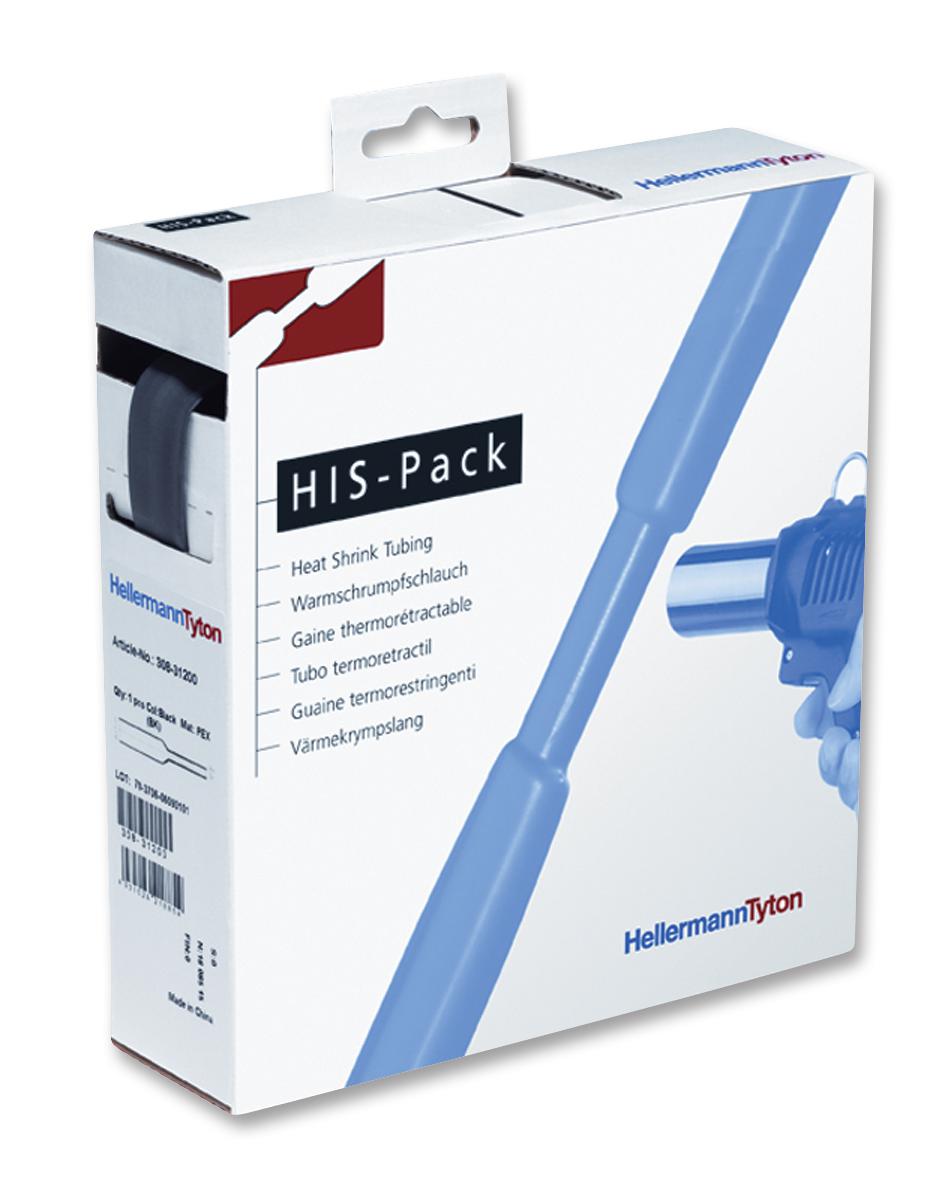

HellermannTyton 30830300 Heat Shrink Tubing
Heat shrinkable tubing with 3:1 shrink ratio, made of cross-linked polyolefin, providing excellent electrical insulation, mechanical protection, and corrosion resistance. Suitable for bundling, insulation, and sealing applications in electrical and electronic projects. Features include high dielectric strength of 20 kV/mm, operating temperature range from -55°C to +135°C, and UL224 VW-1 flammability rating. Available in various sizes and colors, this tubing is ideal for protecting and insulating wire connections in demanding industrial environments, reducing inventory with only six sizes for versatile substrate fitting.
HellermannTyton 30830300 Heat Shrink Tubing Specifications:
- Material: Cross-linked polyolefin (PO-X)
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 100°C
- Dielectric Strength: 20 kV/mm according to ASTM D 150
- Flammability: UL224 VW-1 (except clear)
- Insulation Class: B (VDE 0530)
- Wall Thickness: Varies with size, typical 0.45 to 1.20 mm
- Length: 3 to 10 meters depending on size
- Color Options: Black, Blue, Red, Green-Yellow, Transparent
- Rated Voltage: Up to 600V
- Mechanical flexibility suitable for various wire and cable bundling
- Longitudinal change: negligible after shrinkage
- Certifications: UL, CSA, RoHS compliant
Buy the HellermannTyton Series HIS-3 Heat Shrink Tubing: Reliable Insulation and Protection
Purchase your HellermannTyton HIS-3 heat shrink tubing online now for quick delivery and quality assurance. Perfect for insulation, protection, and bundling in electrical and electronic applications. With a 3:1 shrink ratio, excellent dielectric strength, and a wide operating temperature range, this tubing adapts to various substrate dimensions, reducing inventory needs with only six sizes available. Suitable for demanding industrial environments, it ensures safety, durability, and efficient installation. Buy online today and benefit from trusted quality and fast service.
Order your HellermannTyton HIS-3 heat shrinkable tubing today and enhance the durability and safety of your electrical projects with reliable insulation solutions.
Frequently Asked Questions
Where can I buy HellermannTyton 30830300?
You can click on the BUY or RFQ button to purchase 30830300 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30830300?
You can download the 30830300 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30830300?
HellermannTyton
